mechanical joint restraint

MJ pipe restraint. No radial bolts to tighten.

Nominal Sizes
4 - 12 inches

Working Pressure
Up to 350 psi

Pipe Compatibility
Ductile iron and PVC pipe

MJ pipe restraint

Nominal Sizes
3 - 48 inches

Working Pressure
Up to 350 psi

Pipe Compatibility
Steel and ductile iron

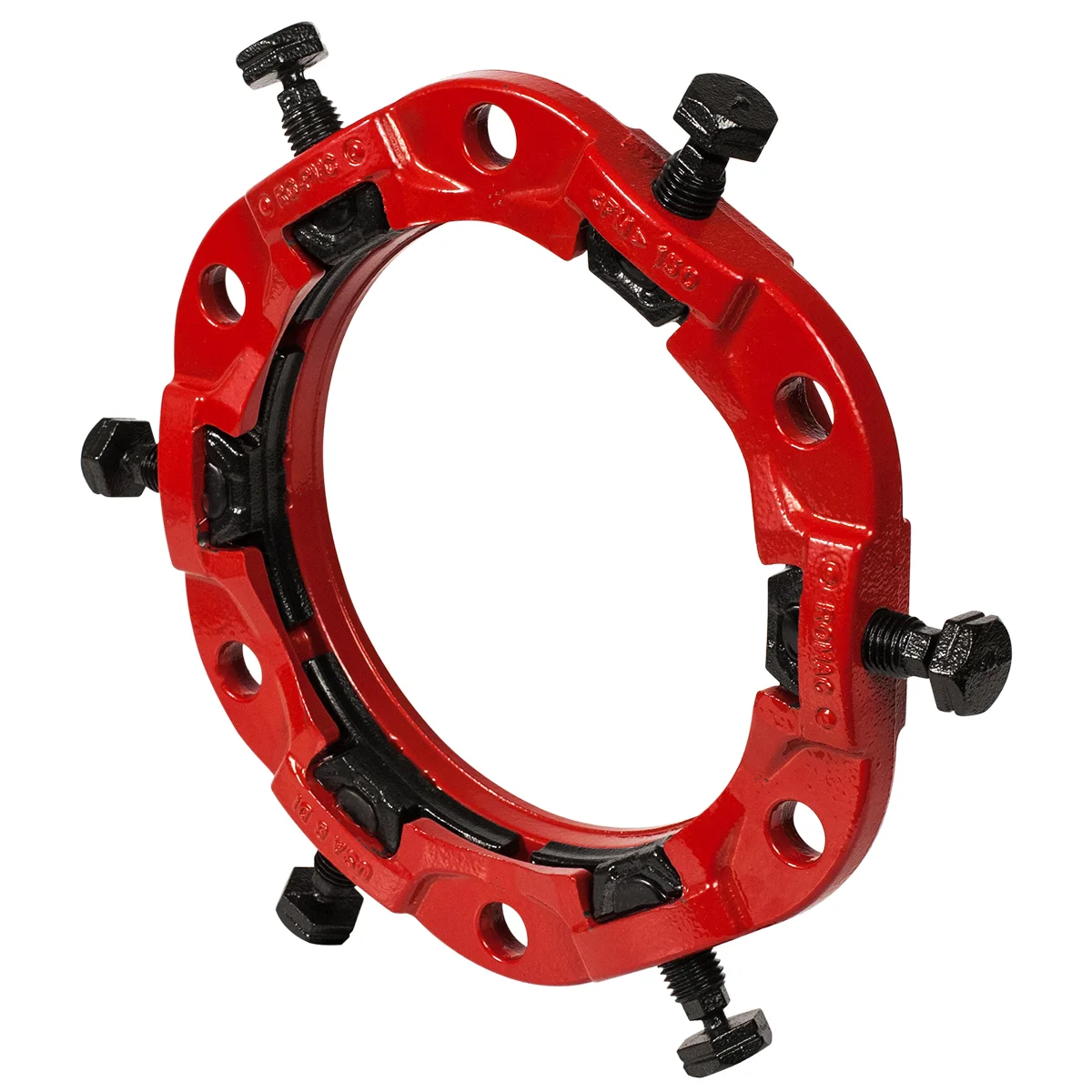

MJ pipe restrainer

Nominal Sizes
3 - 24 inches

Working Pressure
Up to the pressure rating of the pipe

Pipe Compatibility
PVC pipe, see catalog page for details


restrained flange couplings

Wide range flange coupling adapter with restraint

Nominal Sizes
4 - 12 inches

Working Pressure
Up to 350 psi

Pipe Compatibility
Ductile Iron, Cast Iron, PVC and HDPE

Restrained flange coupling adapter

Nominal Sizes
3 - 24 inches

Working Pressure
Up to 275 psi

Pipe Compatibility
Ductile iron, cast iron and 3-12 inch IPS Std. steel pipe

Restrained flange coupling adapter

Nominal Sizes
3 - 24 inches

Working Pressure
Up to the pressure rating of the pipe

Pipe Compatibility
PVC pipe


FLEXIBLE EXPANSION JOINT

Flexible expansion joint accommodates expansion, contraction, rotation, offset and settlement. Available in single-ball or double-ball configurations.

Nominal Sizes
3 - 24 inches, larger sizes available upon request

Working Pressure
Up to 350 psi






split pipe restrainers

Provides restraint for bell & spigot joints, transitions, couplings and mechanical joints

Nominal Sizes
4 - 36 inches

Working Pressure
PVC up to 200 psi, ductile iron up to 150 psi

Pipe Compatibility
Ductile iron, C900, C905 and IPS size PVC

Pipe restraint for MJ fittings, bell & spigot joints and bolted sleeve type couplings

Nominal Sizes
14 - 30 inches

Working Pressure
Up to the pressure rating of the pipe

Pipe Compatibility
PVC pipe



restraint couplings

Wide range pipe coupling with restraint

Nominal Sizes
4 - 12 inches

Working Pressure
Up to 350 psi

Pipe Compatibility
Ductile Iron, Cast Iron, PVC and HDPE

Stainless steel restrained pipe coupling

Nominal Sizes
4 - 12 inches

Working Pressure
See catalog pages

Pipe Compatibility
HDPE, PVC, steel, cast iron and ductile iron

Pipe coupling with restraint

Nominal Sizes
12 - 48 inches

Working Pressure
Up to 350 psi

Pipe Compatibility
Ductile iron pipe


dismantling joints

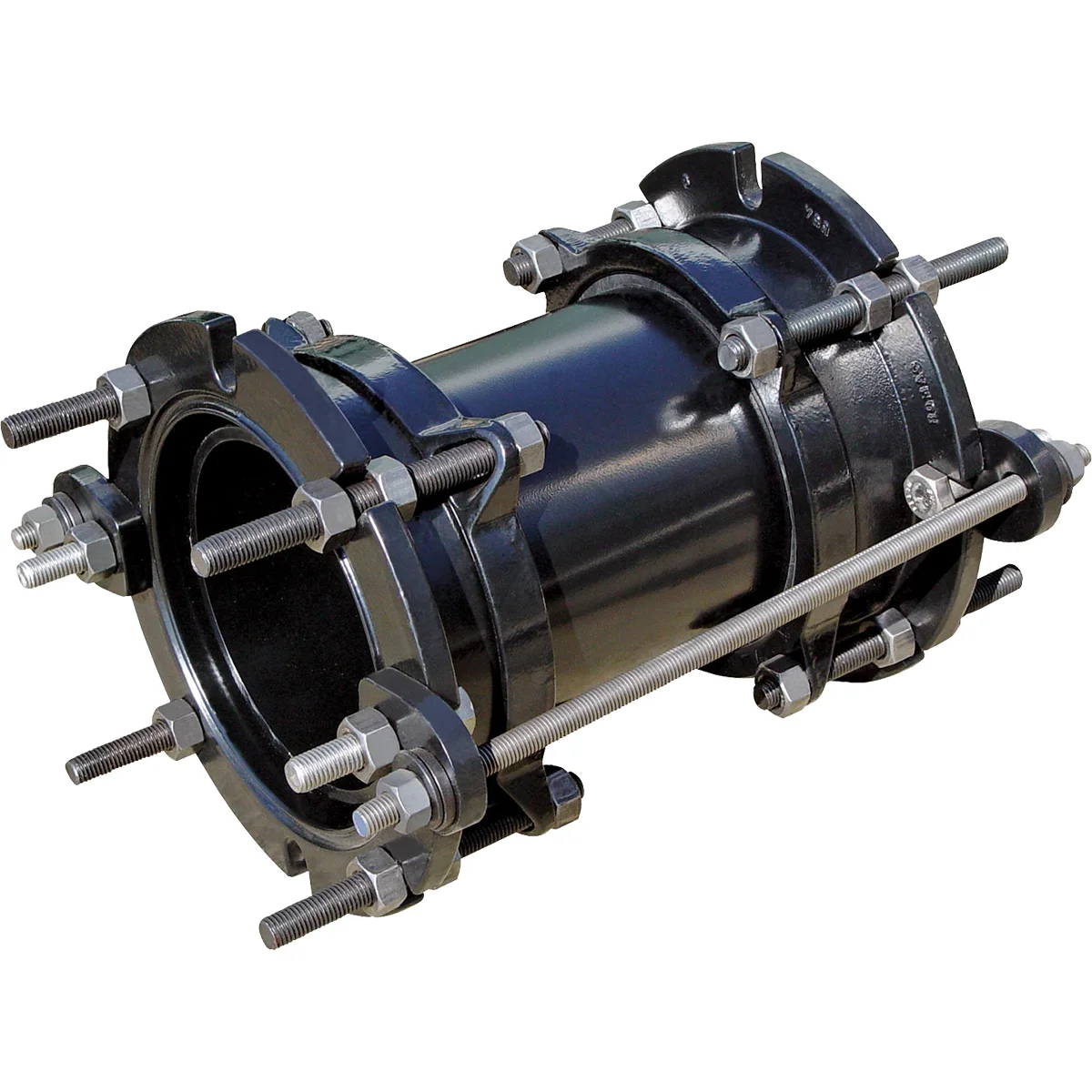

Telescoping flanged pipe fitting. Ideally suited to allow access to valves, meters and other equipment. Dismantling joints can be shortened or lengthened to accommodate the different lay-lengths of adjacent pipe equipment.

Nominal Sizes
3 - 72 inches

Working Pressure
Up to the maximum rating of the flange




Telescoping pipe fitting without tie-rods. Dismantling joints can be shortened or lengthened to accommodate the different lay-lengths of adjacent pipe equipment.

Nominal Sizes
3 - 24 inches

Working Pressure
Up to the maximum rating of the flange






RESTRAINT GASKET

Gasket that seals and provides pipe restraint

Nominal Sizes
4 - 24 inches

Working Pressure
Up to 350 psi

Pipe Compatibility
See submittal



specialty restraint

Equipment connection fitting. Used to provide offset, deflection and restraint for systems with misaligned flanges.

Nominal Sizes
3 - 72 inches

Working Pressure
Up to the maximum rating of the flange

Joins plain end pipe to flanged fittings without threading or welding.

Nominal Sizes
4 - 12 inches

Working Pressure
Up to 300 psi

Pipe Compatibility
Steel and ductile iron pipe

Provides restraint of mechanical joints to prevent pull-out for 0.75" rod.

Pipe Compatibility
Steel, cast iron, plastic and other types of pipe

Harness lugs. Provides restraint for flanged connections.

Nominal Sizes
3 - 72 inches

Working Pressure
See catalog





Provides restraint of mechanical joints to prevent pull-out for 0.75" rod.

Pipe Compatibility
Steel, cast iron, plastic and other types of pipe

Provides restraint for mechanical couplings on steel pipelines.

Nominal Sizes
6 - 96 inches

Working Pressure
See submittal
