TAPPING SLEEVES

Stainless tapping sleeve with full circumferential seal and integrated threaded fasteners

Nominal Sizes
4 - 24 inches

Working Pressure
4" - 8": up to 250 psi; 10" - 24": up to 200 psi

Pipe Compatibility
Steel, cast iron, asbestos cement, plastic and other types of pipe

Fabricated steel tapping sleeve with drop-in bolts

Nominal Sizes
4 - 24 inches

Working Pressure
up to 175 psi

Pipe Compatibility
Steel, ductile iron and plastic pipe

Fabricated steel tapping sleeve. Used to make a branch outlet on concrete steel cylinder pipe.

Nominal Sizes
Available for all sizes of concrete cylinder pipe

Working Pressure
See submittal

Pipe Compatibility
Concrete steel cylinder pipe

Stainless steel tapping sleeve with full circumferential seal, triangular side-bars and drop-in bolts.

Nominal Sizes
4 - 30 inches

Working Pressure
4" - 8": up to 250 psi; 10" - 24": up to 200 psi; 26" - 30": up to 150 psi

Pipe Compatibility
Steel, cast iron, asbestos cement, plastic and other types of pipe

Fabricated steel tapping sleeve with triangular side bars

Nominal Sizes
6 - 42 inches, larger sizes available upon request

Working Pressure
6" - 12": up to 250 psi; 14" - 36": up to 150 psi; 42" and larger: up to 100 psi.

Pipe Compatibility
Steel, cast iron and other types of pipe

Fabricated steel weld-on tapping outlet

Nominal Sizes
6 - 96 inches,  larger sizes available upon request

Working Pressure
Up to 175 psi.

Pipe Compatibility
Steel pipe

Heavy duty stainless steel tapping sleeve

Nominal Sizes
6 - 42 inches, larger sizes available upon request

Working Pressure
6" - 12": up to 250 psi; 14" - 36": up to 150 psi; 42" and larger: up to 150 psi. See submittal for details

Pipe Compatibility
Steel, cast iron, and other types of pipe

Fabricated steel tapping sleeve with side and end gasket seals. Used to make a branch outlet from a main supply line with extra protection for lines subjected to excessive beam loads.

Nominal Sizes
12 - 96 inches

Working Pressure
See submittal

Pipe Compatibility
Steel, cast iron, asbestos cement, plastic and other types of pipe

tapping sleeves for HDPE pipe

Stainless steel tapping sleeve with full circumferential seal

Nominal Sizes
4 - 12 inches

Working Pressure
Up to 150 psi.

Pipe Compatibility
For use on HDPE pipe with a minimum wall thickness of SDR17

Fabricated steel tapping sleeve with drop-in bolts

Nominal Sizes
4 - 24 inches

Working Pressure
Up to 150 psi.

Pipe Compatibility
For use on HDPE pipe with a minimum wall thickness of SDR17



LINE STOPPING SLEEVE

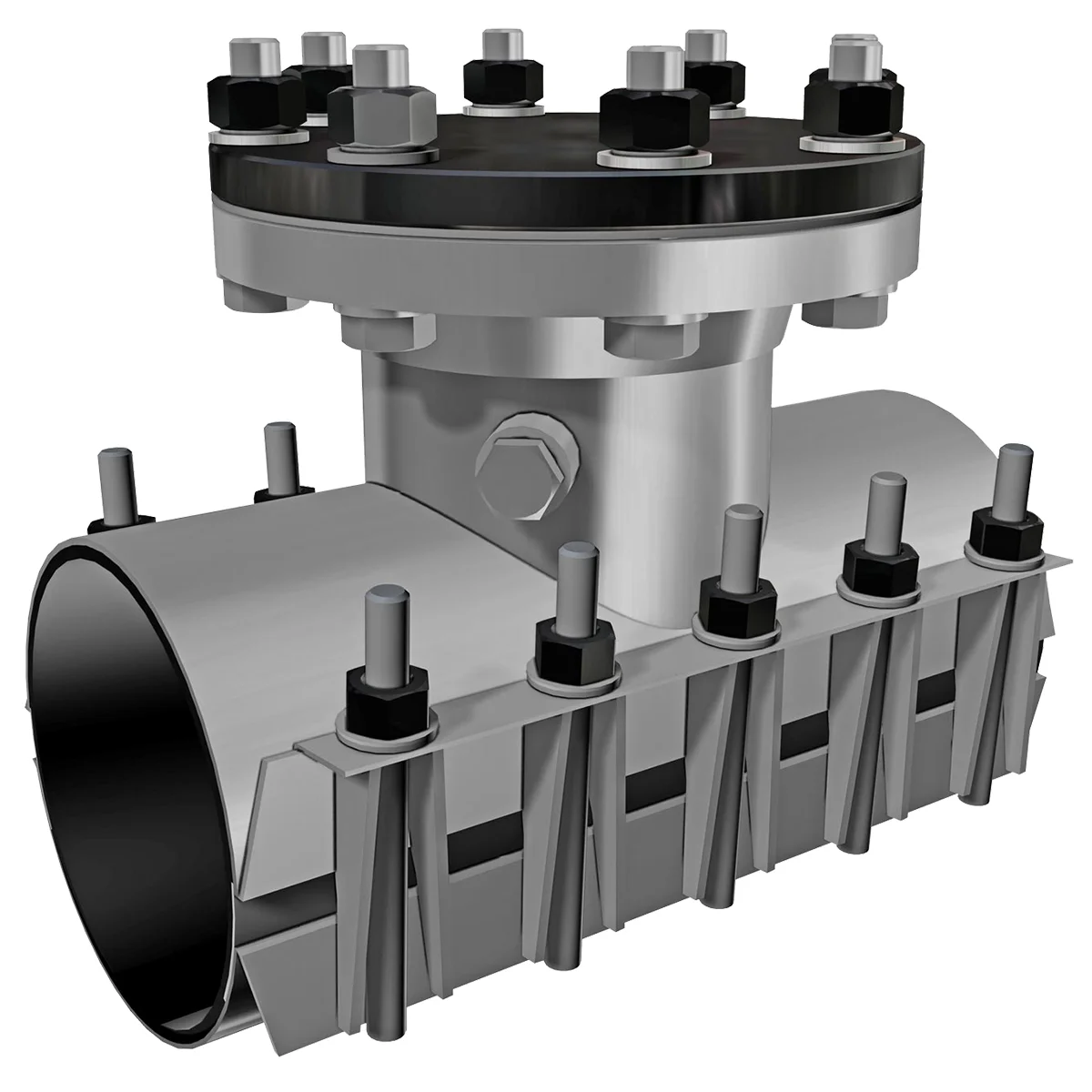

Stainless steel line stop sleeve

Nominal Sizes
4 - 12 inches

Working Pressure
4" - 8" up to 250 psi; 10" - 12" up to 200 psi

Pipe Compatibility
Compatible with most line stopping equipment
