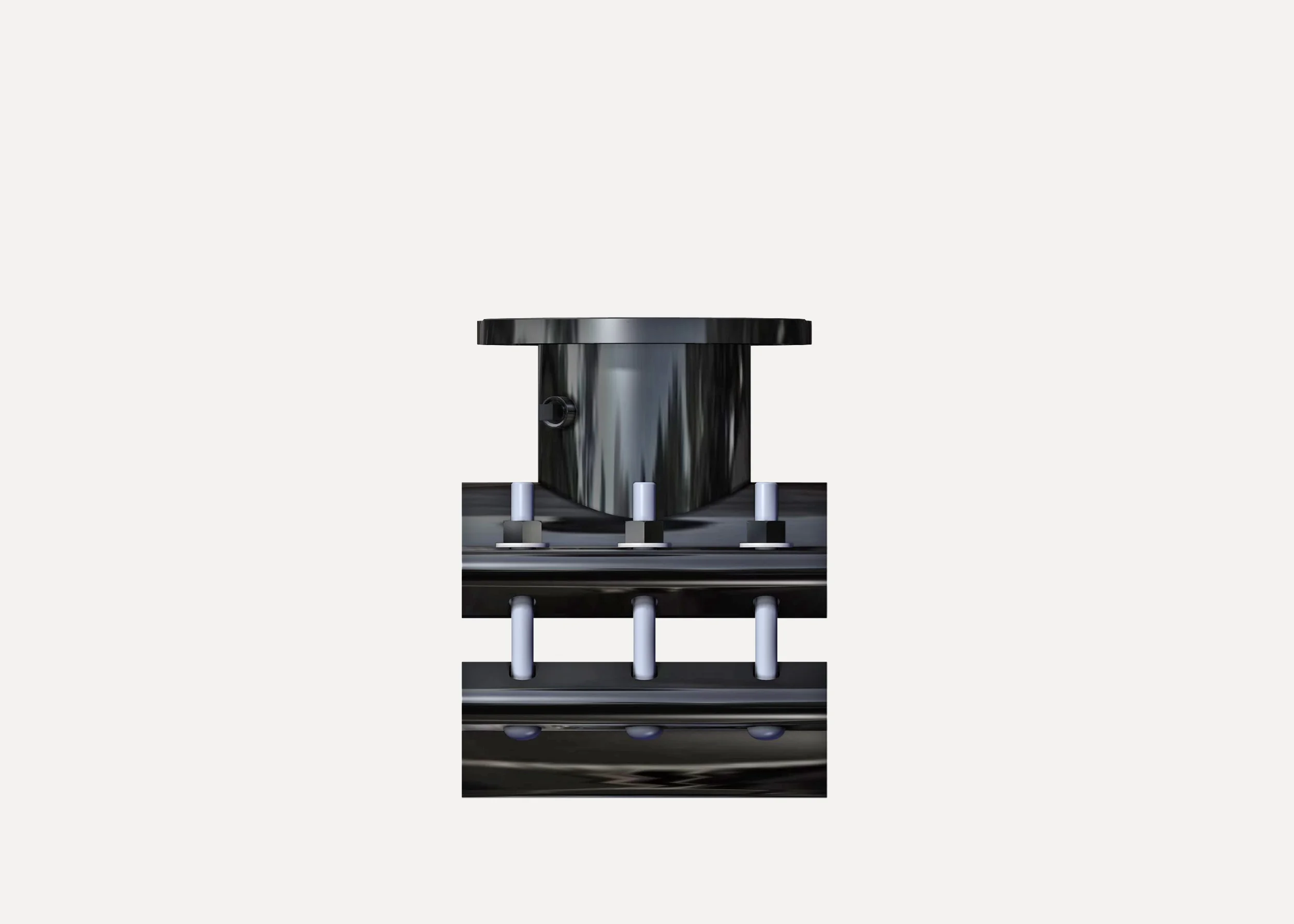

style FTS420

Fabricated steel tapping sleeve with triangular side bars and drop-in bolts. Meets requirements of MSS SP-124 and AWWA C223.
Manufactured in the USA.

USE  To make a branch outlet.
SIZES  6" - 42" Larger sizes available upon request.
OUTLET SIZES 3" - 42"
COMPATIBILITY  Steel, cast iron and other types of pipe.
WORKING PRESSURE  6" - 12": up to 250 psi; 14" - 36": up to 150 psi; 42" and larger: up to 100 psi. For higher pressures, contact your representative.

NSF61 certified on request.




MATERIALS

BODY ASTM A36 steel or equivalent unless noted.
FLANGE AWWA Class D Steel Ring Flange, compatible with ANSI Class 125 and 150 bolt circles, are standard. Other flange styles are available. Designed to fit tapping valve lip per MSS SP-60 where applicable.
BOLTS AND NUTS High strength low alloy steel bolts and nuts. Steel meets AWWA Standard C111. Type 304 and 316 Stainless Steel bolt material optional.
TEST PLUG ¾ inch NPT type 304 Stainless Steel. Plug threads coated to prevent galling.
FLANGE Gaskets 3” through 12” full face proprietary gasket are made from Styrene Butadiene Rubber (SBR) compounded for water and sewer service in accordance with ASTM D 2000. Other compounds available for petroleum, chemicals, or high temperature service.
OUTLET GASKETS 3” through 12” size on size SBR wire reinforced. Larger than 12” size on size are Nitrile Butadiene Rubber (NBR) compounded for water and sewer service in accordance with ASTM D 2000. Other compounds available on request.
COATING Fusion bonded epoxy in accordance with AWWA C213.
