style fcg

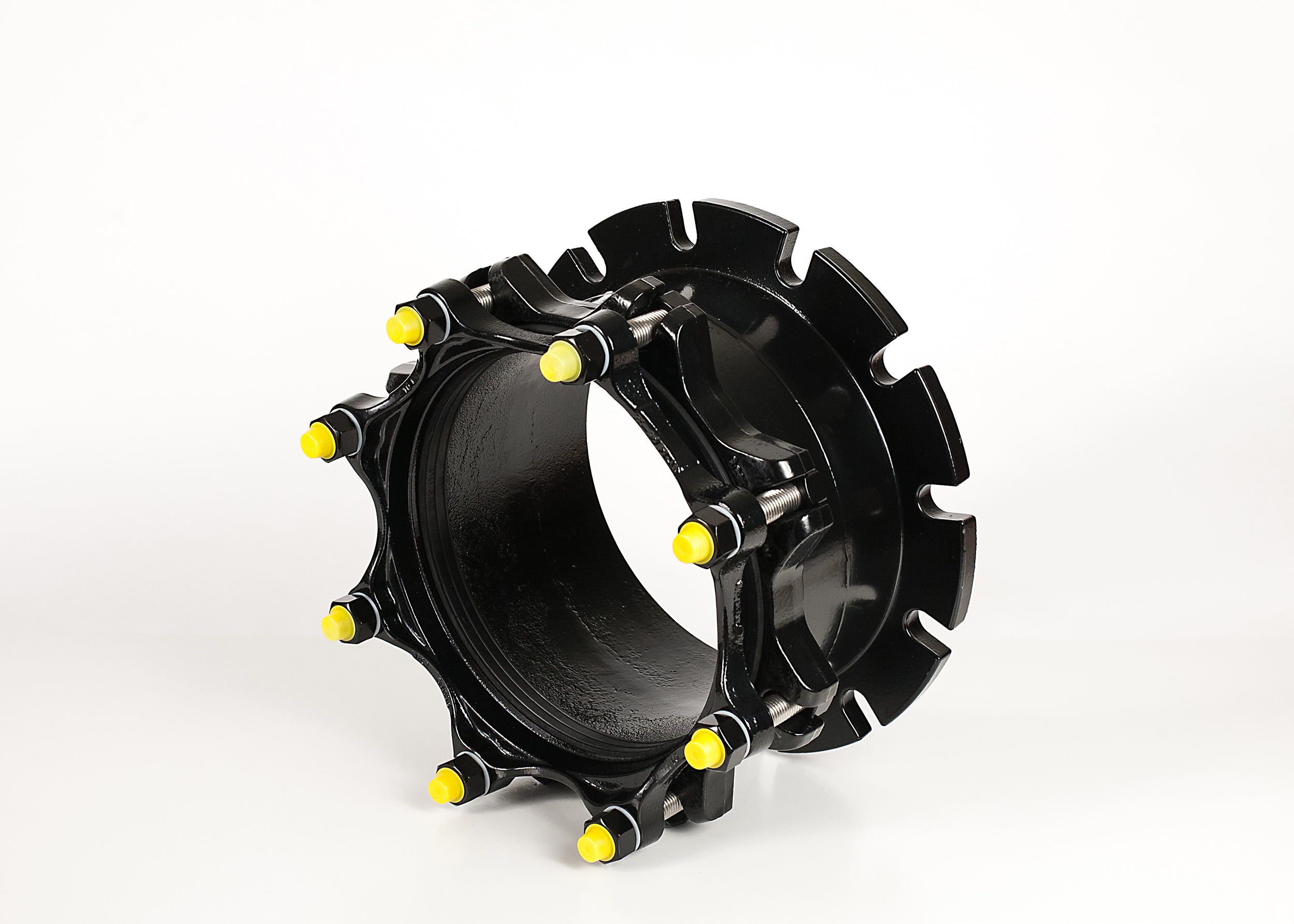

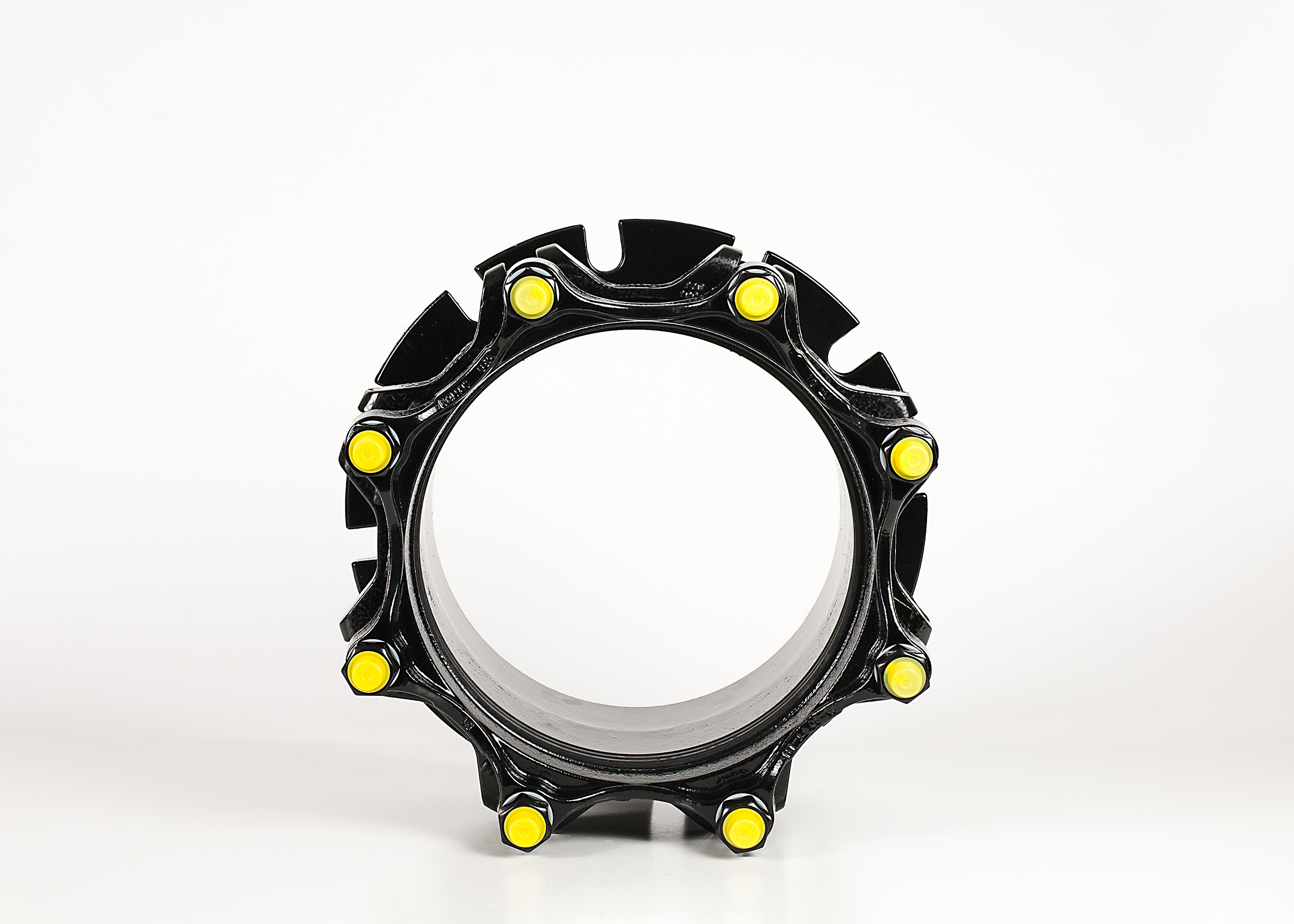

Flanged coupling adapter.
Manufactured in the USA.

USE  Provide a flexible flanged to plain end connection.
SIZES  3" - 12"
COMPATIBILITY  Steel, cast iron, plastic and other types of pipe.
WORKING PRESSURE  Up to 275 psi.

NSF61 certified on request.



CASTINGS The end ring and flanged body are cast from ductile (nodular) iron, meeting or exceeding ASTM A 536.
FLANGE Compatible with ANSI Class 125 and 150 bolt circles.
GASKETS Gaskets are made from virgin Styrene Butadiene Rubber (SBR) compounded for water and sewer service in accordance with ASTM D 2000 MBA 710. Flange gasket is an “O” ring style made of Nitrile Butadiene Rubber (NBR) in accordance with ASTM D 2000 MBK. Other compounds available for petroleum, chemical, or high temperature service.
BOLTS AND NUTS High strength low alloy steel trackhead and T-head bolt National coarse rolled thread and heavy hex nuts. Steel meets AWWA C111 composition specifications. Above nuts and bolts are corrosion resistant. Stainless steel bolts and nuts available on request.
COATINGS Shop coat applied to cast parts for corrosion protection in transit. Fusion bonded epoxy, liquid epoxy and other coatings available on request.
