style fc400

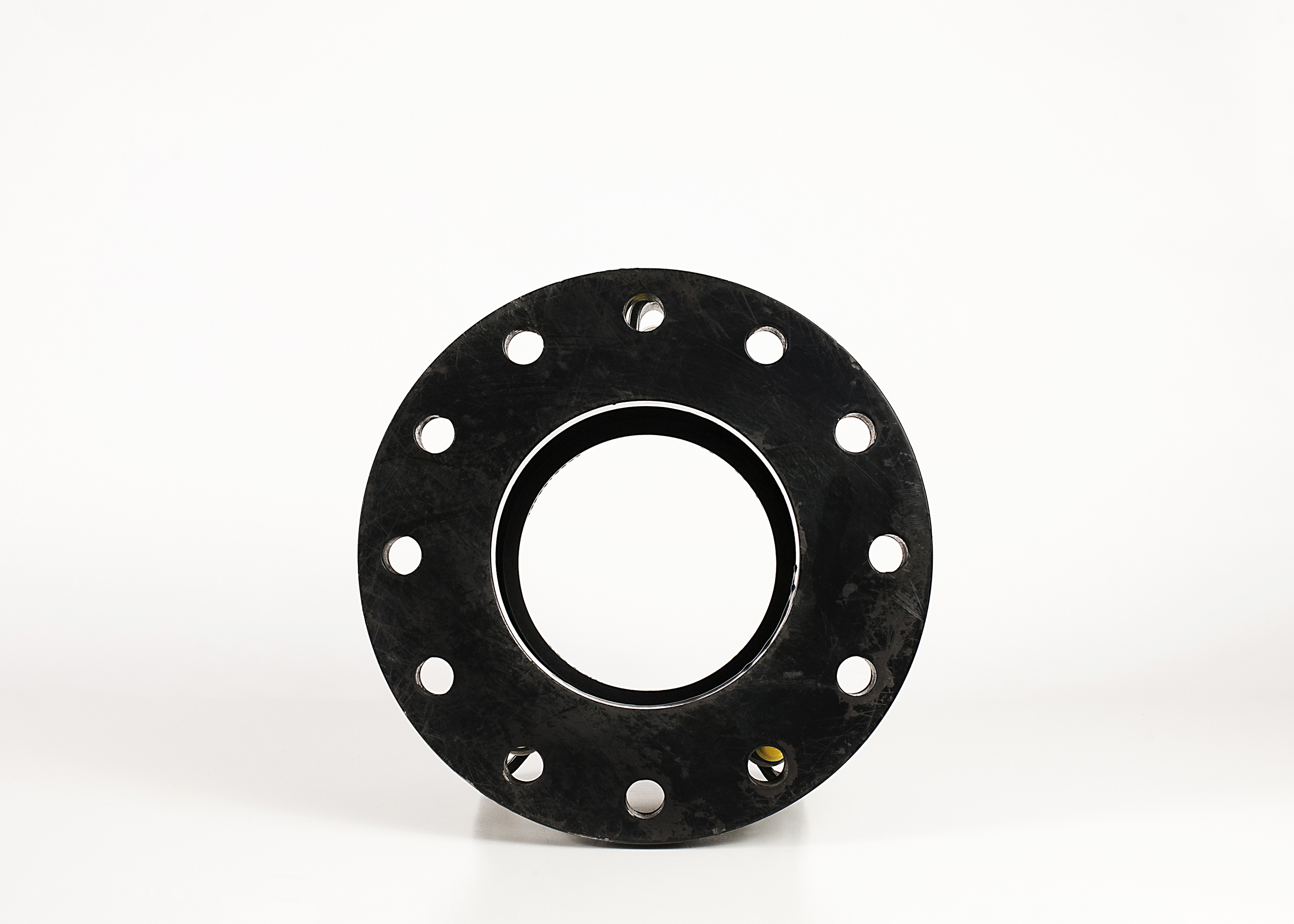

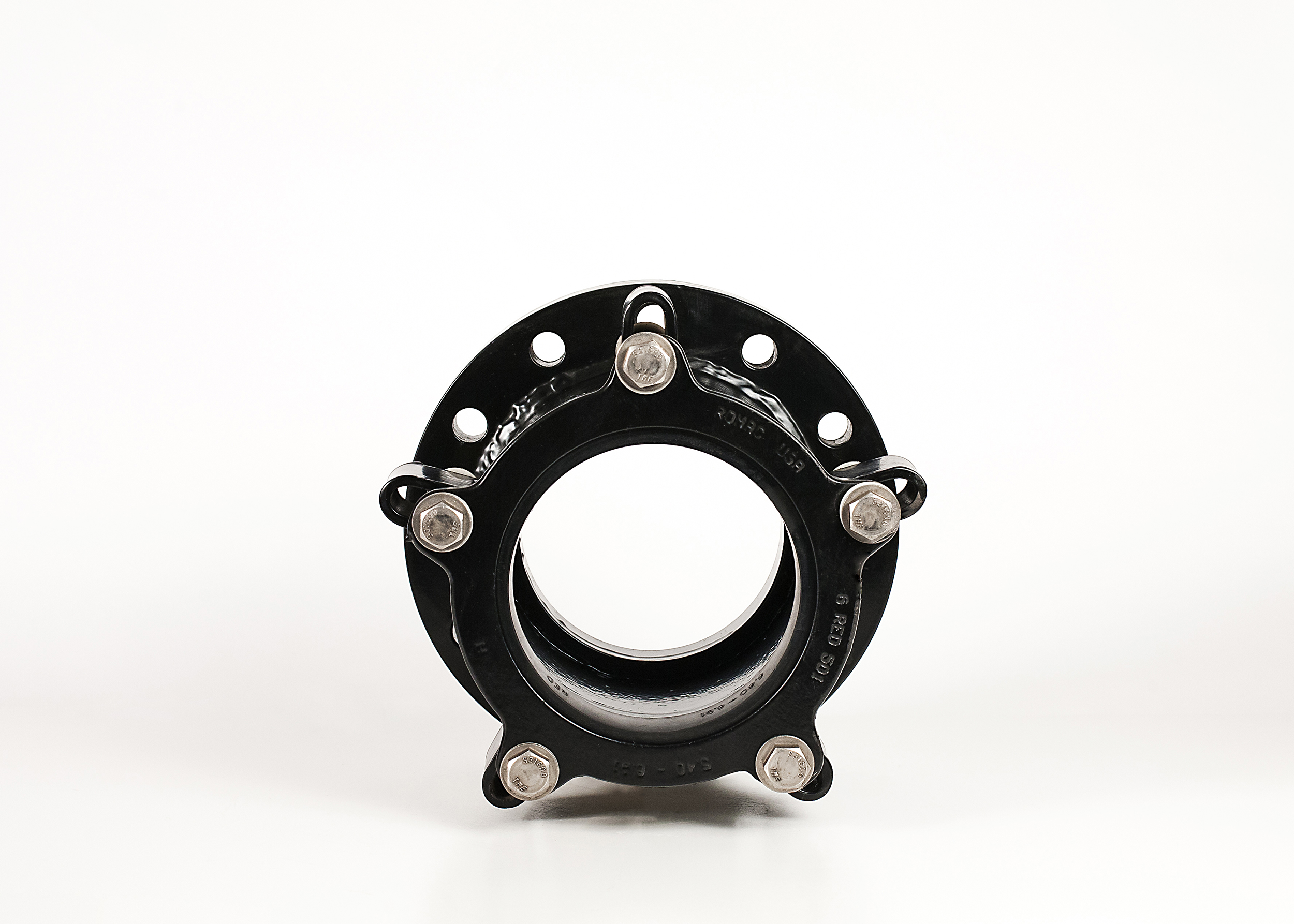

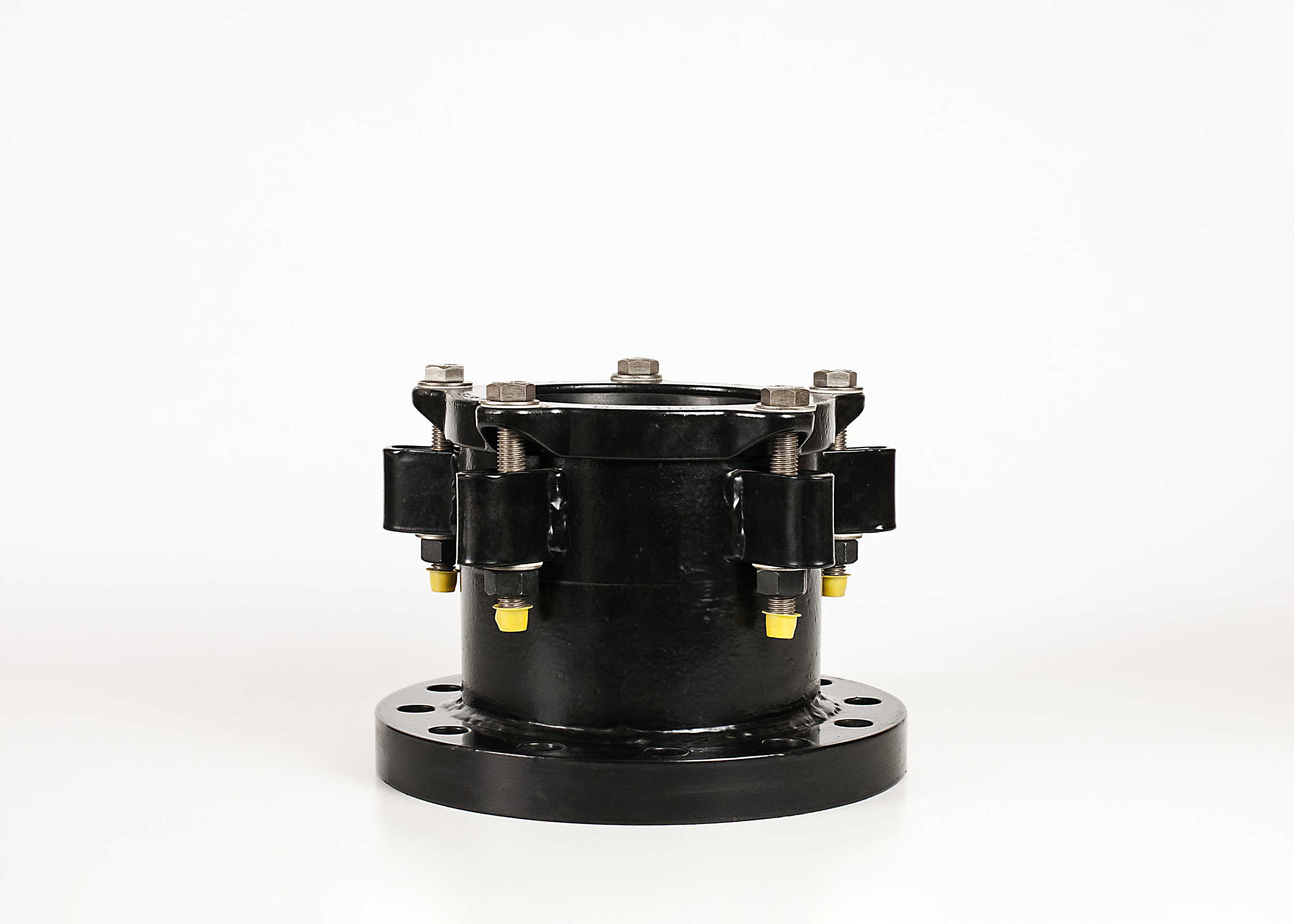

Fabricated steel flanged coupling adapter.
Manufactured in the USA.

USE  Flexibly couple plain end pipe to flanges.
SIZES  12" - 96"
COMPATIBILITY  Steel, cast iron, asbestos cement, plastic and other types of pipe.
WORKING PRESSURE  See product submittal.

NSF61 certified on request.



FLANGE AWWA Class D Steel Ring Flange, compatible with ANSI Class 125 and 150 bolt circles. Other flanges available upon request.
END RING AND BODY The end ring and body are made from ASTM A 36 steel or ductile (nodular) iron meeting or exceeding ASTM A 536, Grade 65-45-12. When anchor pins are requested on FC400's, the wall thickness of the body will be 3/8".
GASKETS Nitrile Butadiene Rubber (NBR) compounded for water and sewer service also resistant to hyprocarbons. Meeting the requirements of ASTM D 2000. Other compounds available on request.
BOLTS AND NUTS High strength low alloy steel bolts and nuts. Steel meets AWWA Standard C111. Type 304 and 316 Stainless Steel bolt material optional.
COATINGS Shop coat applied to parts for corrosion protection in transit. Fusion bonded epoxy, liquid epoxy and other coatings available on request.
