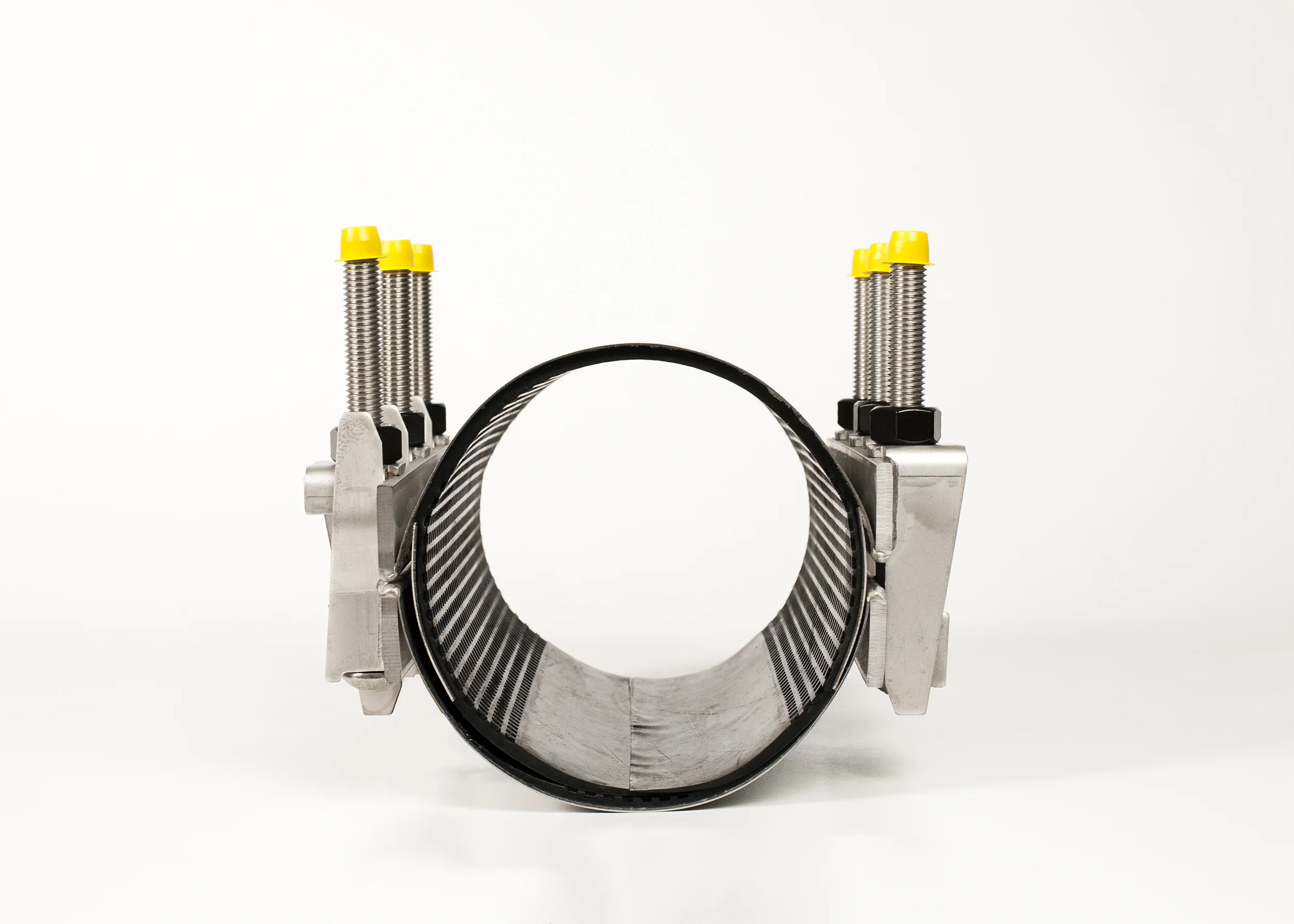

Two-section stainless steel repair clamp with removable bolts.
Manufactured in the USA.
USE Full circumferential repair of splits and holes.
SIZES 4" - 12"
COMPATIBILITY Steel, cast iron, asbestos cement, plastic and other types of pipe.
WORKING PRESSURE Up to 150 psi.
NSF61 certified upon request.
SHELL 304 Stainless Steel 22 or 20 gauge depending on size.
SIDEBARS Heavy gauge 304 Stainless Steel, GTAW welded to form permanent fusion with shell.
LUGS 3/16" 304 Stainless Steel, fused to sidebars by GMAW welding.
BOLTS 5/8”-11 UNC thread track head, type 304 stainless steel per ASTM A 193.
NUTS 5/8” heavy hex, type 304 Stainless Steel per ASTM A 194. Nuts coated to prevent galling.
ARMORS Heavy gauge 304 Stainless Steel, bonded to gasket to bridge gap at lug area.
GASKETS Virgin SBR rubber compounded for water and sewer service in accordance with ASTM D 2000 MAA 610. Other compounds available for petroleum or high temperature service, or other special applications.
