ec501

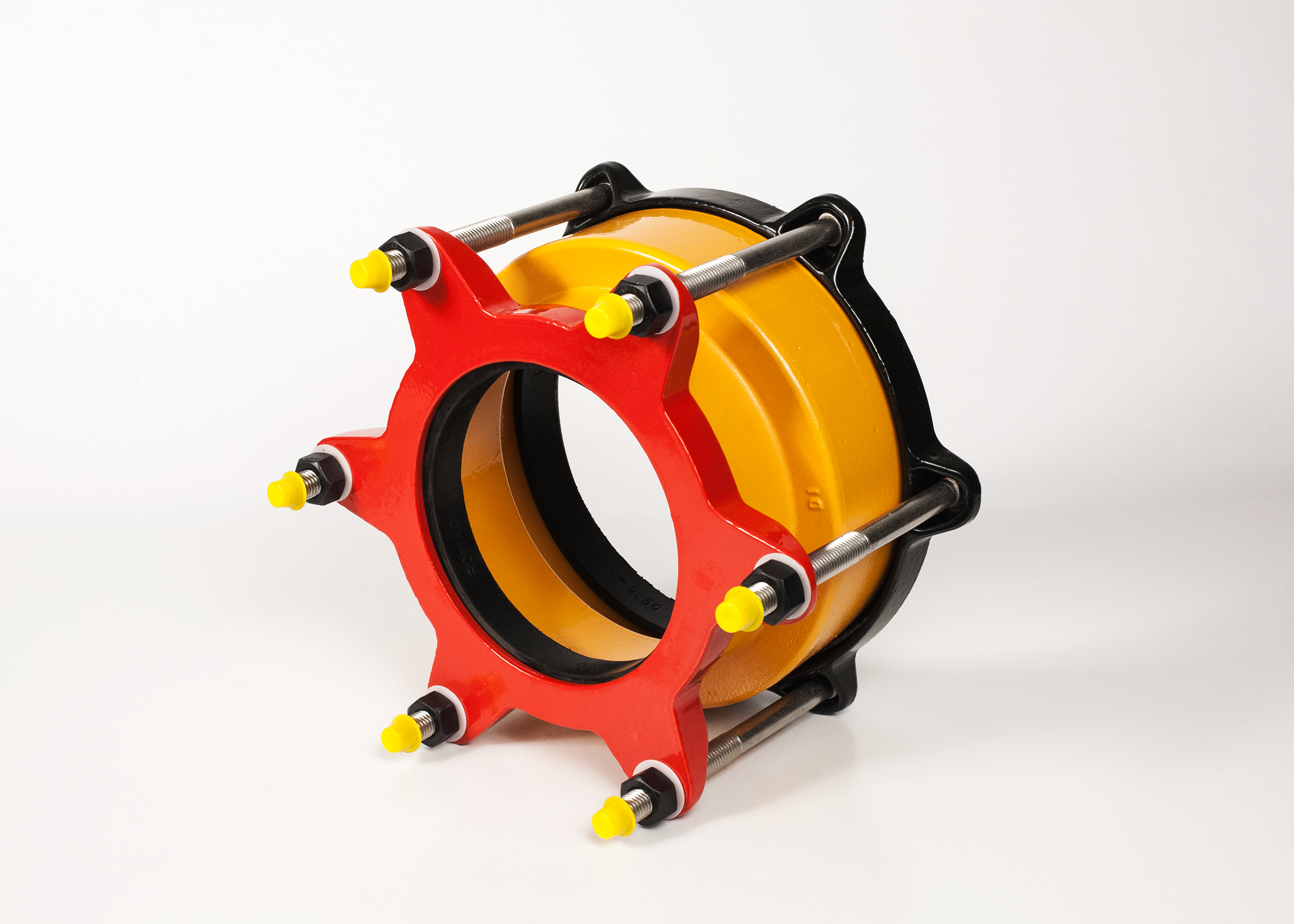

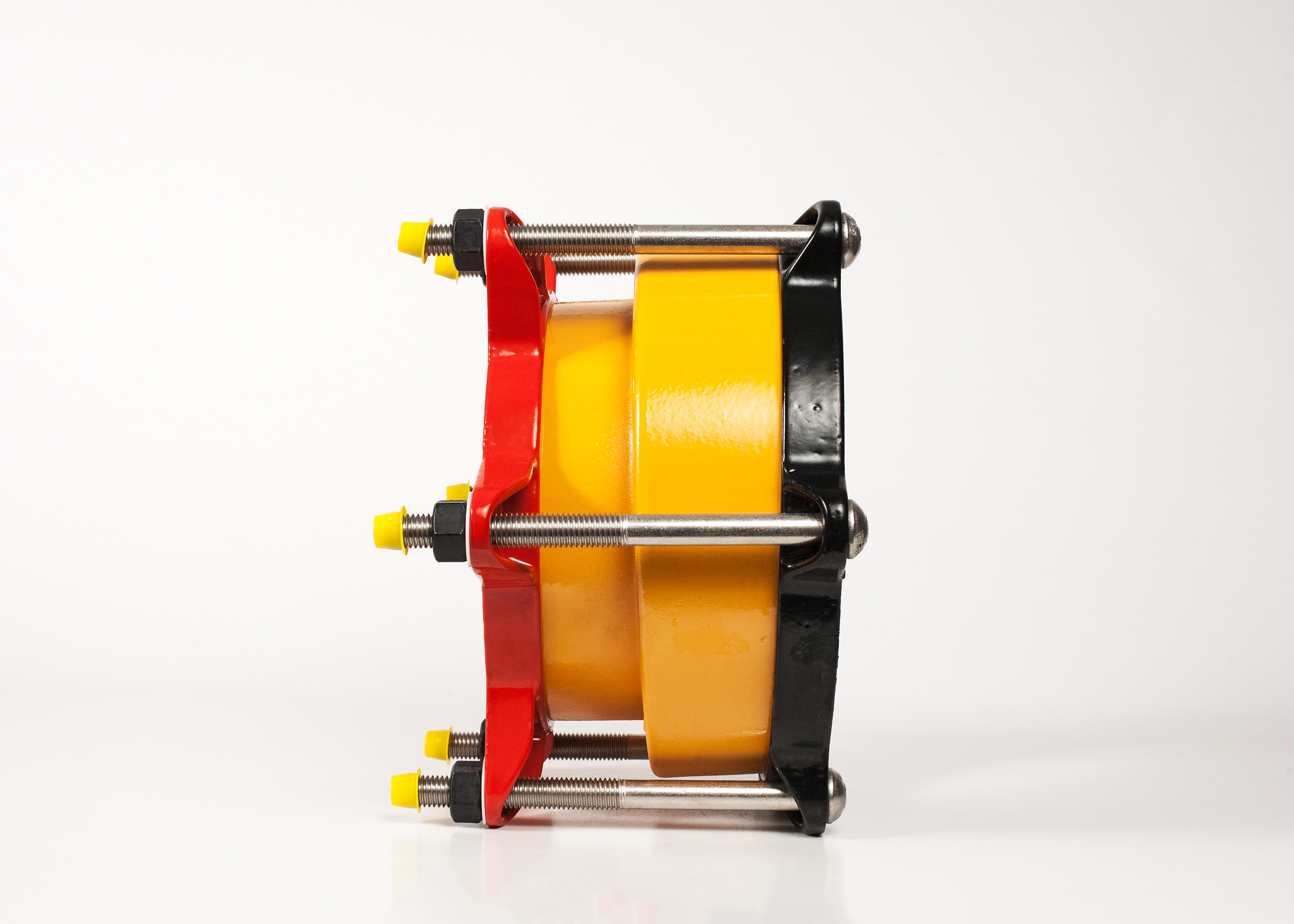

Ductile iron end cap coupling
Manufactured in the U.S.A.

USE  For testing or capping of a pipeline
SIZES 4" - 16”
COMPATIBILITY  Recommended for use on steel, cast iron, asbestos cement, plastic and other types of pipe
WORKING PRESSURE  Up to 260 psi. For higher pressure, consult your representative.

NSF61 certified upon request




MATERIALS

CASTINGS The end rings and center rings are cast from ductile (nodular) iron, meeting or exceeding ASTM A 536.
END CAP End caps are furnished with 2" IPT female threads with plug.
GASKETS Gaskets are made from virgin Styrene Butadiene Rubber (SBR) compounded for water and sewer service in accordance with ASTM D 2000 MBA 710. Other compounds available for petroleum, chemical, or high temperature service.
BOLTS AND NUTS 5/8 inch, High strength low alloy steel trackhead bolts. National coarse rolled thread and heavy hex nuts. Steel meets AWWA C111 composition specifications. Stainless steel bolts and nuts available on request.
COATINGS Shop coat applied to cast parts for corrosion protection in transit. Fusion bonded epoxy, liquid epoxy and other coatings available on request.
