macro hp TWO-BOLT
EXTENDED RANGE COUPLING

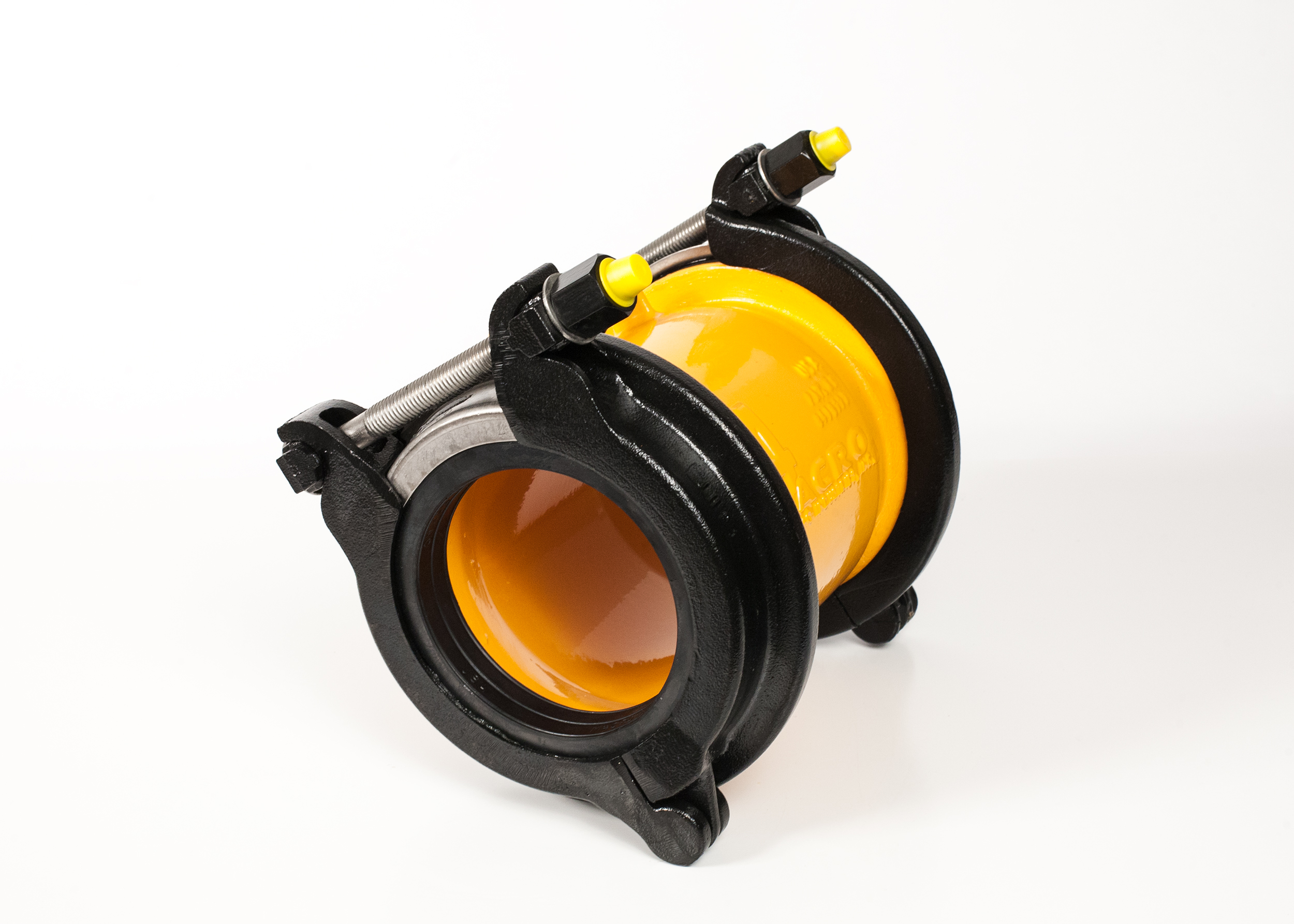

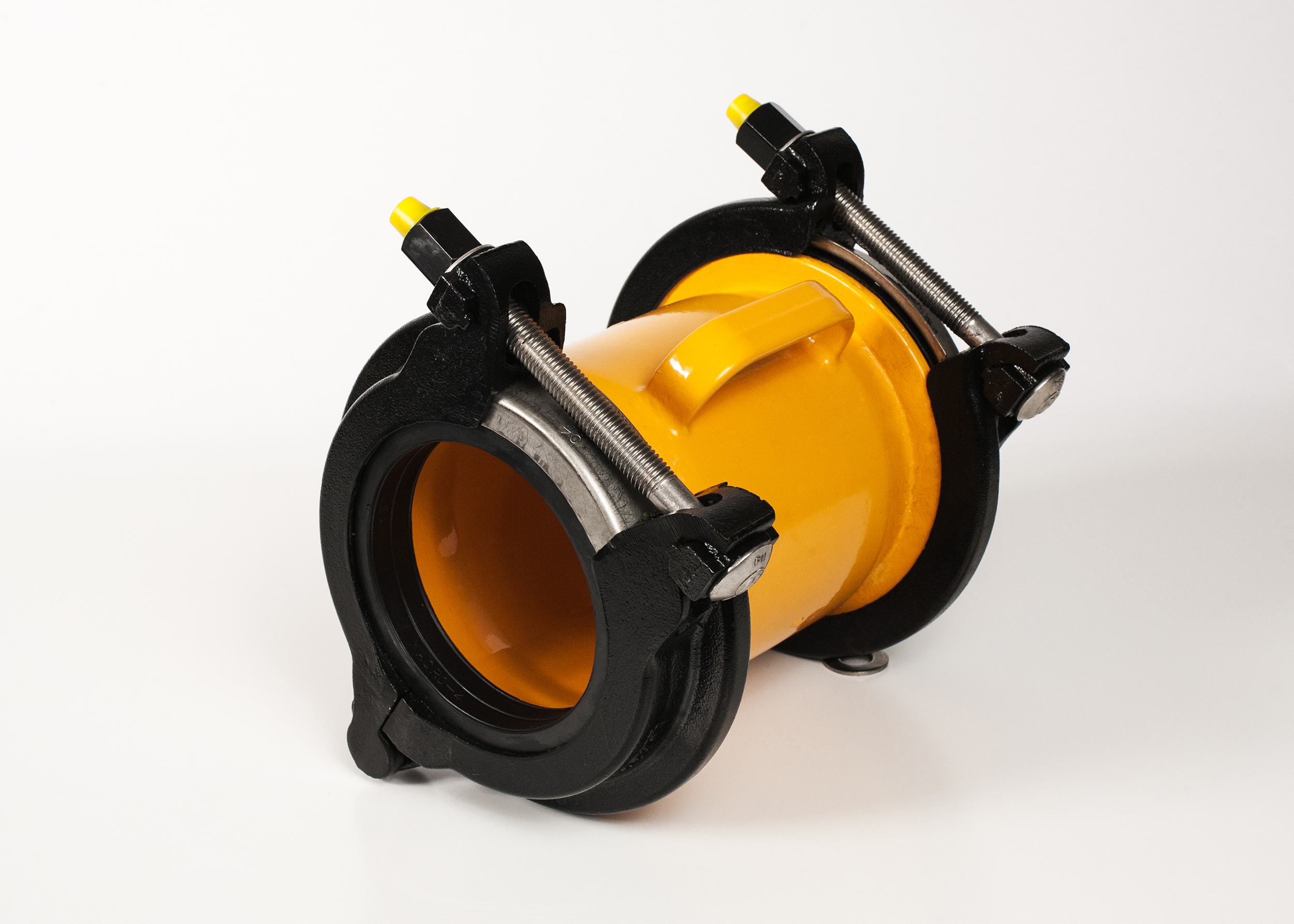

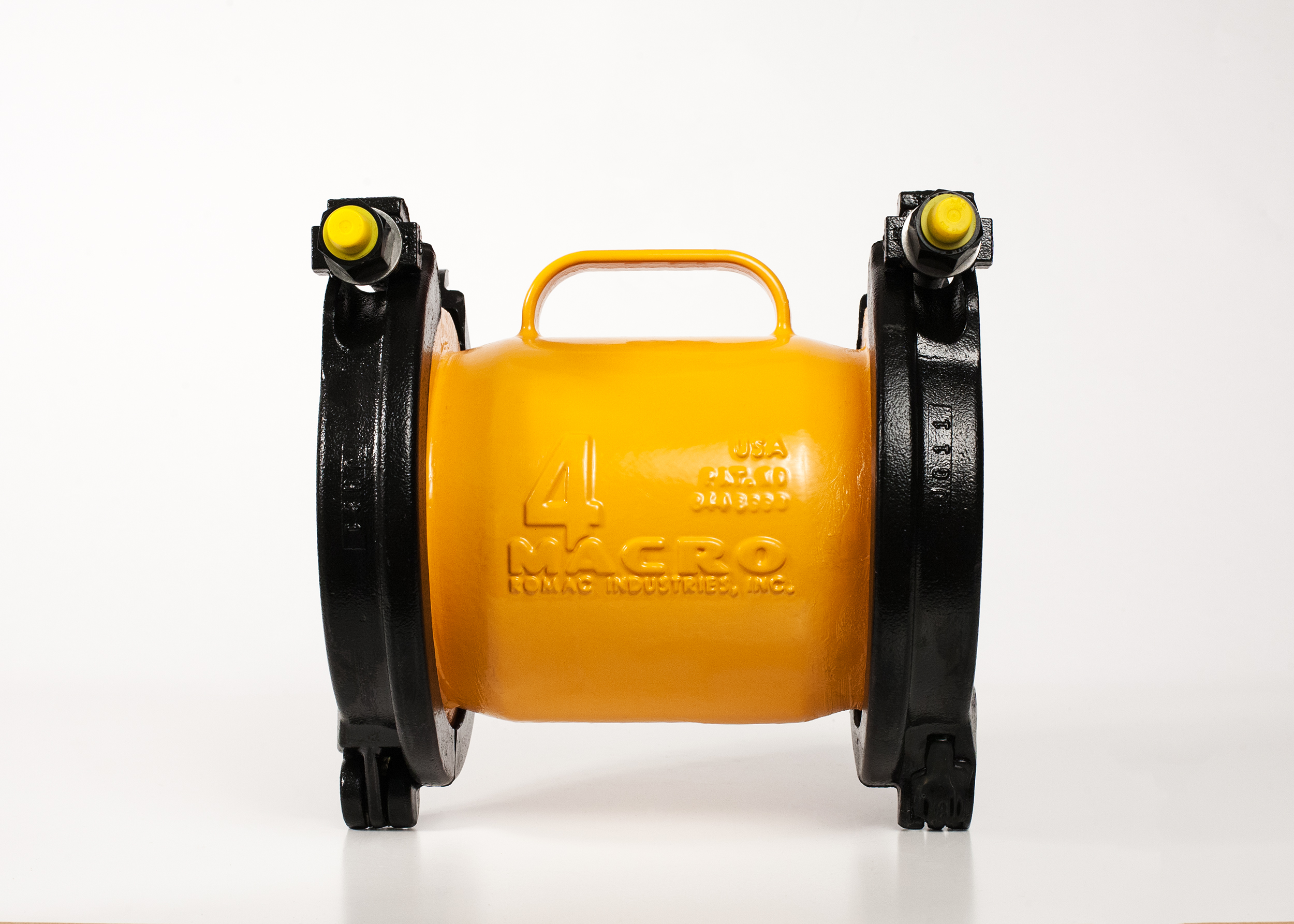

Romac's second generation two-bolt extended range coupling.
Manufactured in the USA.
USE Couple pipe ends with same or different diameters.
SIZES 2" - 12” & 16”
COMPATIBILITY Steel, cast iron, asbestos cement, plastic and other types of pipe.
WORKING PRESSURE Up to 305 psi.
US PATENT: 8,448,993, 9,303,801 & 10,253,909
NSF61 certified.
DESIGNED FOR STRENGTH AND LONG LIFE
Ductile iron end-rings and center-ring have no welds. Heavy duty stainless steel bolts with anti-galling protection. 304 stainless steel armors are bonded to the gaskets. Center ring is fusion bonded epoxy in accordance with AWWA C213 & NSF 61 certified. End rings are E-coated epoxy.
HIGH PERFORMANCE GASKETS
With a single gasket Macro couplings accommodate IPS through cast iron pipe. XL sizes cover DI through Oversize Cast Iron. For larger pipe diameters such as some asbestos cement, a separate A/C gasket is included.
EASY TO HANDLE AND INSTALL
The built-in handle makes the Macro simple to carry and maneuver during installation. Stab-fit installation. Each end of the Macro tightens independently with a single bolt (two bolts each end for 16 inch). If your work space requires it, the end rings can be clocked. The Macro is lighter than traditional wide range couplings.
SEGMENTED END RINGS
Segmented end rings compress the gaskets evenly around the entire pipe diameter. The integrated hinge allows the Macro to be easily disassembled if necessary.
CATHODIC PROTECTION
The Macro can be ordered with an adapter/connection for cathodic protection if desired.
ALLOWS DEFLECTION
When properly installed the Macro HP can accommodate pipe deflection of up to 10 degrees on sizes 2"-12" (5 degrees each end), and up to 8 degrees on 16" (4 degrees each end).
ROMAC ORIGINAL DESIGN
Patent Numbers: 8448993, 9303801 & 10253909
MATERIALS
CASTINGS All cast components (end rings, center ring, and bolt cams) are ductile iron, meeting or exceeding the requirements of ASTM A 536, grade 65-45-12 or 60-40-18.
END RINGS 4 – 12 inch End Rings are segmented and joined with an integrated hinge. 2 and 3 inch use a type 316 stainless steel pin. The gap is spanned by the armor. 16 inch Macro end rings consist of 2 halves connected with bolts.
CENTER RING Cast with integral handle for ease of assembly.
GASKETS Made from virgin Ethylene Propylene Diene Monomer Rubber (EPDM) compounded for water and sewer service in accordance with ASTM D2000, NSF 61 Certified. NBR - NSF 61 gaskets available upon request, 2 - 12 inch.
ARMOR Heavy gauge 304 stainless steel.
BOLTS AND NUTS Type 304 stainless steel. 2 and 3 inch are 1/2-13 UNC, 4 – 16 inch are 5/8-11 UNC. All are carriage head bolts with heavy hex nuts. Fasteners provided with anti-galling protection. 316 stainless available on request.
COATINGS Center Ring is Romacote fusion bonded epoxy, NSF 61 Certified. Center Ring can be coated to AWWA C213 upon request. End Rings are E-Coated epoxy.”
A/C Gasket Change
