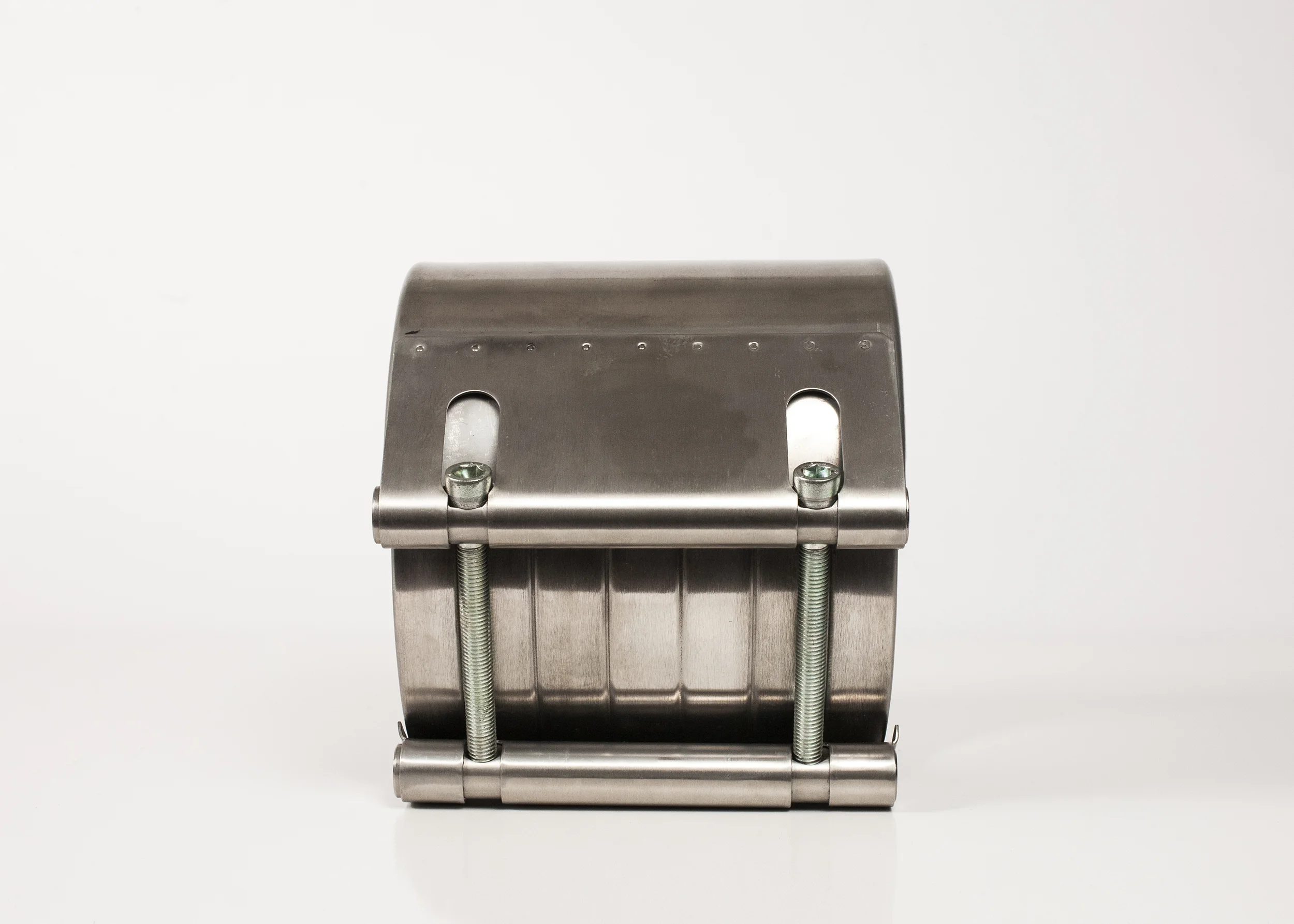

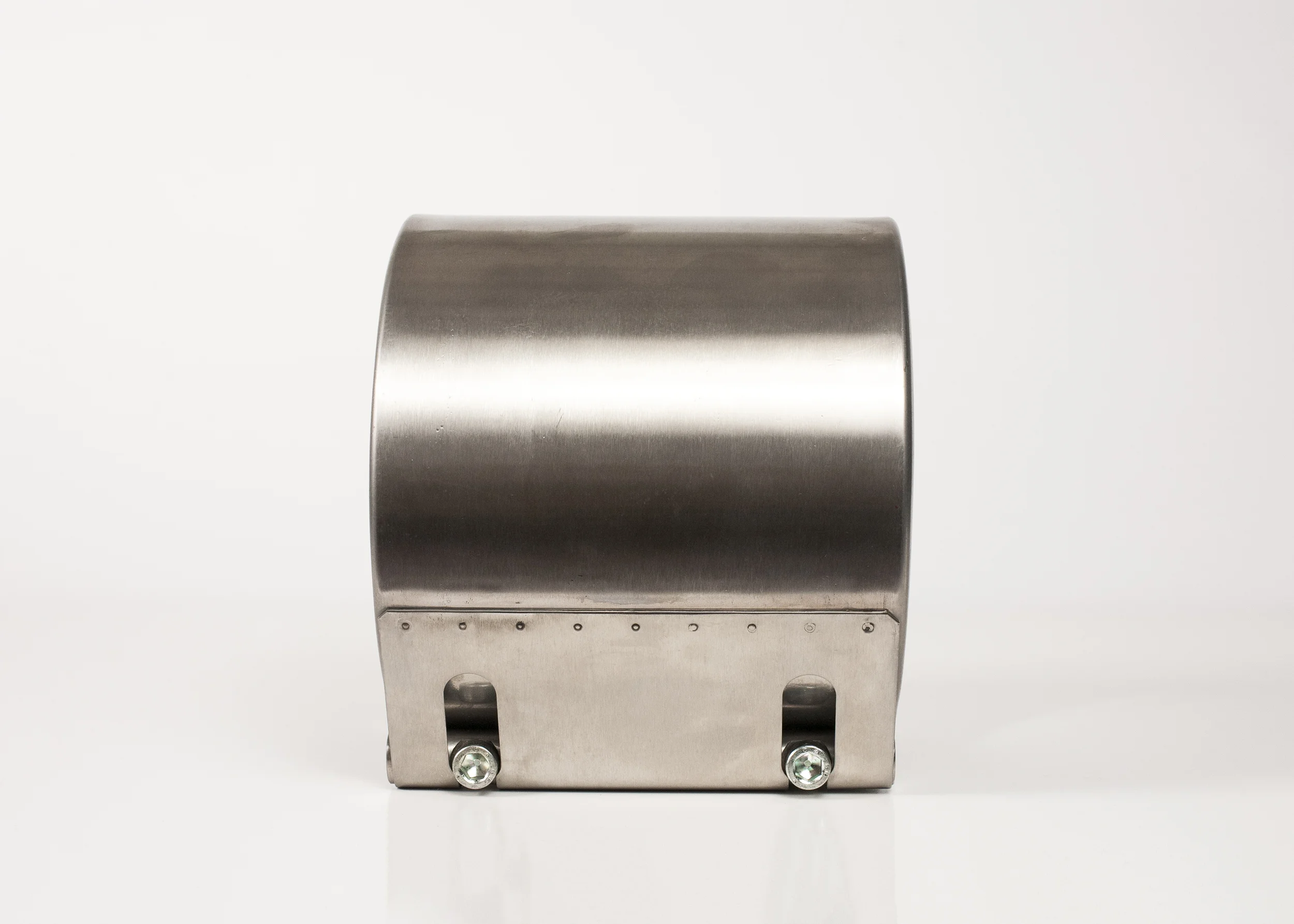

armor link
All stainless steel coupling with quick stab-fit installation.
USE Repair leaking solvent welds.
ACCOMMODATES Angular deflection, misaligned pipes, gaps between pipe ends, connection of pipe with movement.
SIZES 4" - 24"
COMPATIBILITY Steel, cast iron, ductile iron, asbestos cement, concrete, PVC & HDPE (PE 4710 & PE 3408).
WORKING PRESSURE See catalog page.
NSF61 Certified in 6 inch nominal sizes and larger.
MATERIALS
SHELL 304L Stainless Steel (other materials available upon request).
SIDEBARS 304 Stainless Steel (other materials available upon request).
BOLTS 304 Stainless Steel. Metric socket head cap screw, coated to prevent galling.
ARMORS 304 Stainless Steel (other materials available upon request).
GASKET Ethylene Propylene Diene Monomer (EPDM) compounded for water and sewer service. Temperature rating is -4º to 212ºF. NBR and Silicone available upon request.
WELDS GMAW and GTAW welds. 316L Stainless Steel filler wire used as appropriate. All welds fully passivated for enhanced corrosion resistance.
