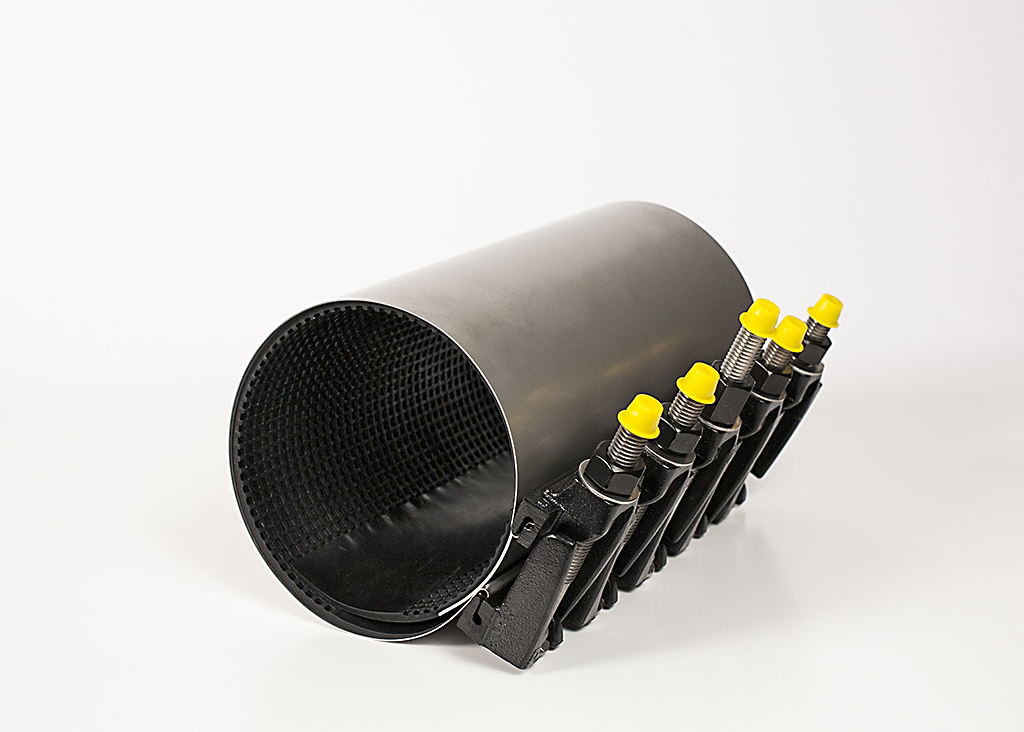

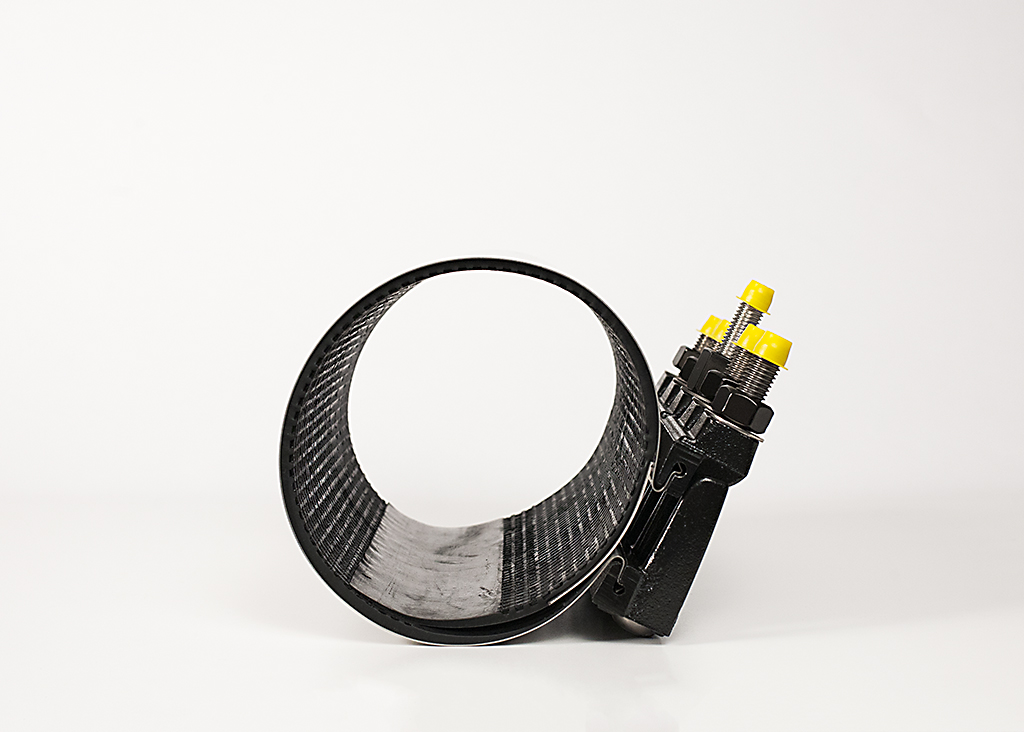

STYLE CL1
Cast lug repair clamp - Normal Range .40” with removable lugs.
Manufactured in the USA.
USE Full circumferential, single section cast lug repair clamp.
SIZES 2" - 12"
COMPATIBILITY Steel, cast iron, asbestos cement, plastic and other types of pipe.
WORKING PRESSURE Up to 150 psi.
NSF61 certified upon request.
MATERIALS
SHELL 304 Stainless Steel per ASTM A 240, 18 to 22 gauge depending on size. Shell hemmed to strengthen engagement with lugs.
LUGS The lugs are cast from ductile (nodular) iron, meeting or exceeding ASTM A 536. Boat nose design to ease installation. Precision cast pocket to assure solid joint between lug and shell. With Romac’s unique pocket design the lugs are removable for those close clearance areas.
BOLTS AND NUTS High strength low alloy steel trackhead bolts. National coarse rolled thread and heavy hex nuts. Steel meets AWWA C111 composition specification. 7” starter bolt with 1” tall nut. Stainless steel bolts and nuts available on request.
ARMORS Heavy gauge 304 Stainless Steel per ASTM A 240, bonded to gasket to bridge gap at lug area.
GASKETS Virgin SBR rubber compounded for water and sewer service in accordance with ASTM D 2000 MAA 610. Other compounds available for petroleum or high temperature service, or other special applications.
LUG COATING E-Coat Epoxy, Electrocoated and heat cured. E-Coat provides improved corrosion resistance.
