style Sts420

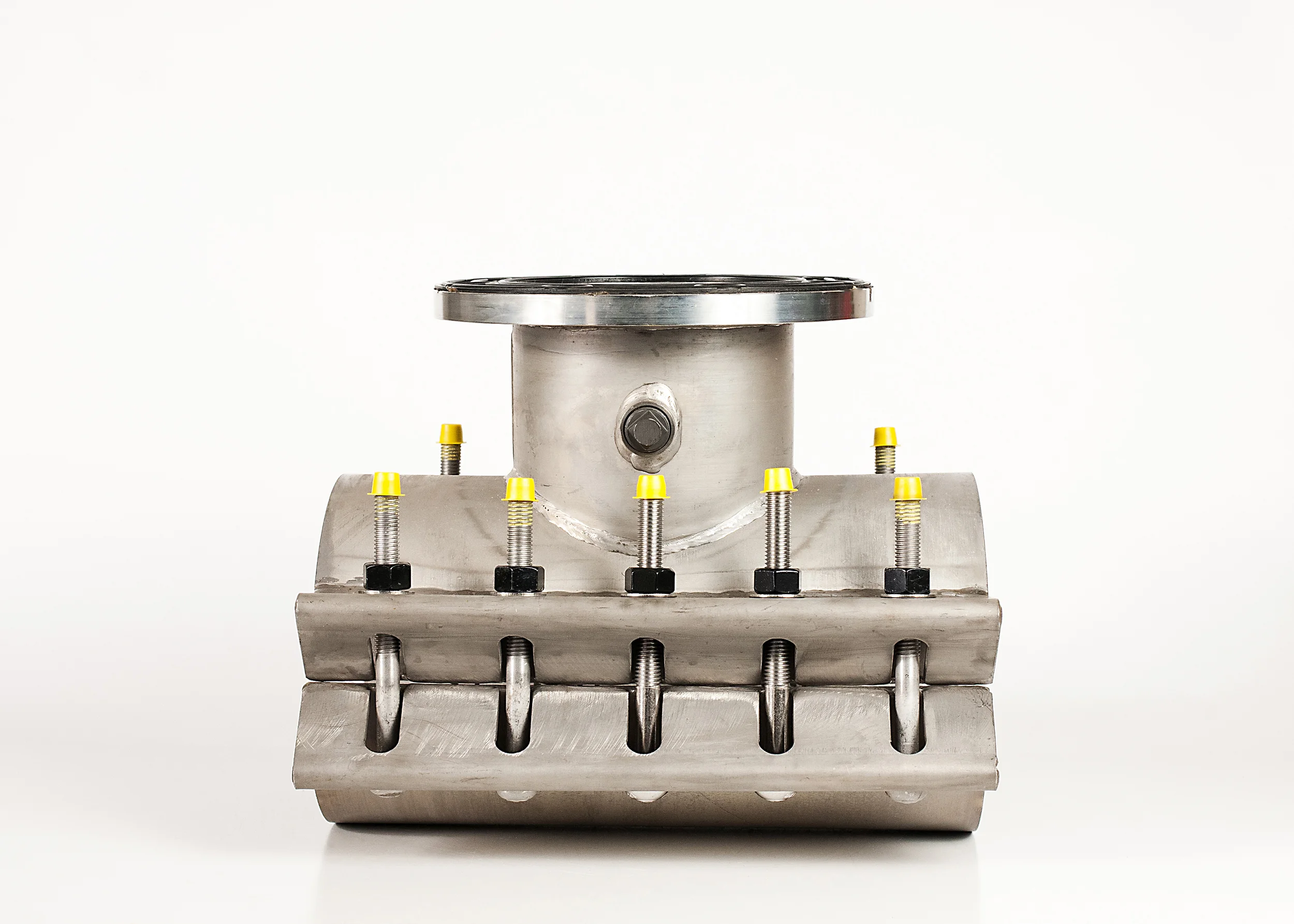

Stainless steel tapping sleeve with triangular side bars. Also available with a threaded outlet (STS420T). Meets requirements of MSS SP-124 and AWWA C223.
Manufactured in the USA.

USE  to make a branch outlet.
SIZES  6" - 48" Larger sizes available upon request.
OUTLET SIZES 3" - 24" Larger sizes available upon request.
COMPATIBILITY  Steel, cast iron, and other types of pipe.
WORKING PRESSURE   6" - 12": 250 psi; 14" - 42": 150 psi; 48" and larger: 100 psi. See submittal for details. For higher pressure ratings, consult your representative.

NSF61 certified on request.




MATERIALS

BODY ASTM A240 304/304L (18-8) Stainless Steel Plate.
FLANGE 304 Stainless Steel Ring Flange per AWWA C228 Class D. Compatible with ANSI Class 125 and 150 bolt circles. Other flange configurations available.
SIDEBARS ASTM A240 304/304L Stainless Steel. Heavy gauge.
BOLTS AND NUTS 304 Stainless Steel 5/8” National Course rolled thread track-head bolts and heavy hex nuts. Threads are coated to prevent galling.
TEST PLUG 304 Stainless Steel ¾” NPT Hex Head Plug. Threads are coated to prevent galling.
FLANGE GASKETS Styrene Butadiene Rubber (SBR) compounded for water and sewer service in accordance with ASTM D 2000. Flange Gaskets only provided with 3” – 12”Flanged Outlets. Other compounds available on request.
OUTLET GASKETS Styrene Butadiene Rubber (SBR) with reinforcing wire up to 12” Nominal by 12” Outlet. Nitrile Butadiene Rubber (NBR) with larger than 12” Nominal. Rubber is compounded for water and sewer service in accordance with ASTM D 2000. Other compounds available on request.
