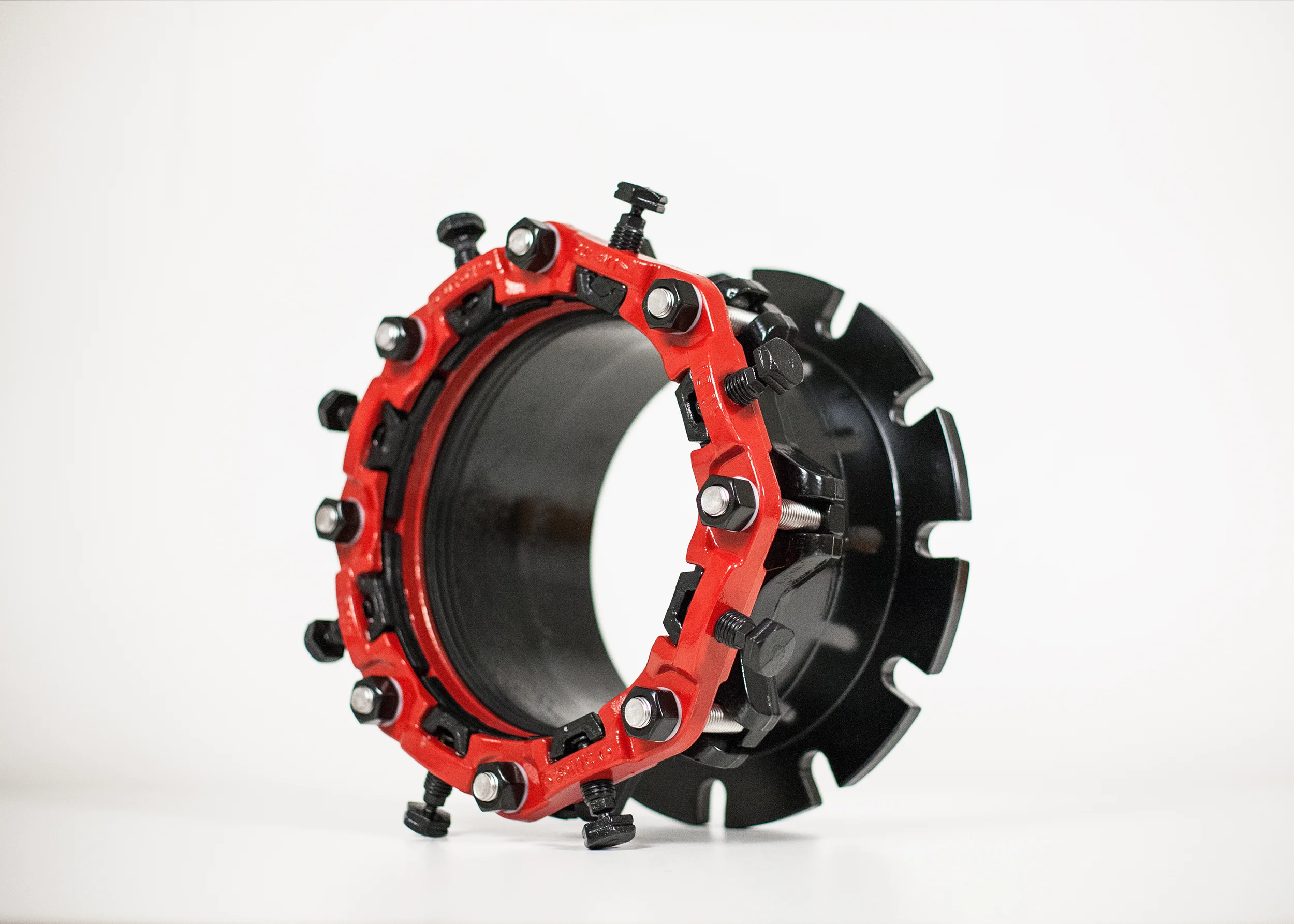

style RFCA-pvc
Flanged coupling adapter with restraint.
Manufactured in the USA.
USE Provide a restrained flexible flanged to plain end connection.
SIZES 3" - 24"
COMPATIBILITY PVC pipe (see catalog page for complete details).
WORKING PRESSURE Up to the pressure rating of the pipe unless otherwise specified.
NSF61 certified on request.
MATERIALS
GLAND AND FLANGE BODY Ductile (nodular) iron, meeting or exceeding ASTM A 536, Grade 65-45-12.
GASKETS Gasket is made from virgin Styrene Butadiene Rubber (SBR) compounded for water and sewer service in accordance with ASTM D 2000 MBA 710. Flange gasket is O ring style and is made of Nitrile Butadiene Rubber (NBR) in accordance with ASTM D 2000. Other compounds available for petroleum, chemical, or high temperature service on request.
RESTRAINING BOLT 7/8 –9 roll thread, Ductile (nodular) iron, meeting or exceeding ASTM A 536.
RESTRAINING LUGS Ductile (nodular) iron, meeting or exceeding ASTM A 536. Heat treated using a proprietary process.
GLAND BOLTS AND NUTS High strength low alloy steel T-head bolt. National coarse rolled thread and heavy hex nut. Steel meets AWWA C111 composition specifications. Stainless steel bolts and nuts available on request, this option will be provided as all thread rod and two nuts.
COATINGS Shop coat applied to cast parts for corrosion protection in transit. Fusion bonded epoxy, RomaGrip Romabond polyester, available on request.
FLANGE Compatible with ANSI Class 125 and 150 bolt circles.
