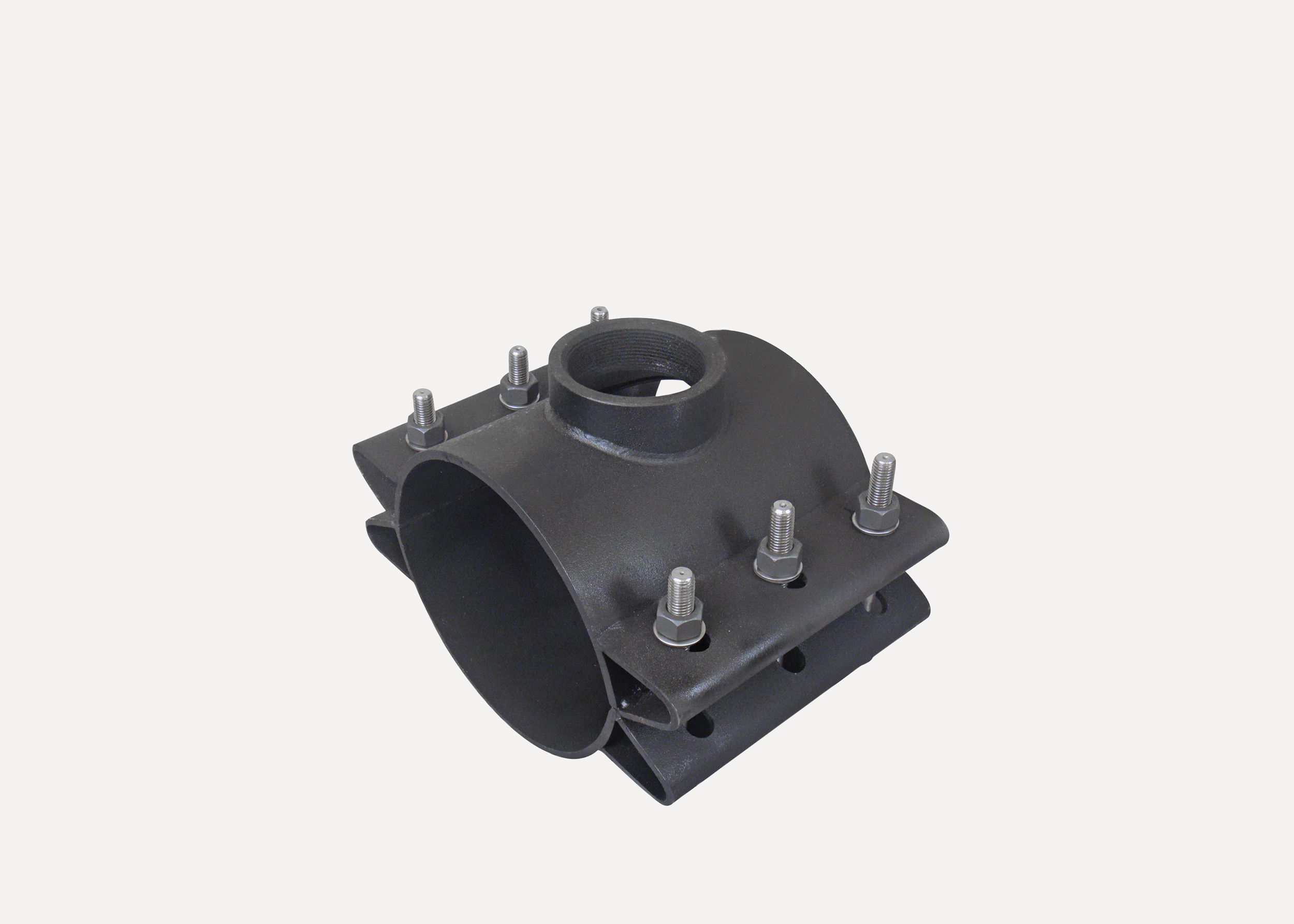

style FTS420T
Fabricated steel service saddle. Also available in all stainless steel (STS420T).
Manufactured in the USA.
SIZES 6" - 96"
OUTLET SIZES 3/4" - 4"
COMPATIBILITY Steel, cast iron, asbestos cement, plastic and other types of pipe.
WORKING PRESSURE 6" - 24" up to 250 psi; 30" - 42" up to 150 psi; larger than 42": 100 psi.
NSF61 certified upon request..
MATERIALS
BODY ASTM A 36 Steel Plate.
TAP NPT or AWWA (CC), male or female threads.
BOLTS AND NUTS High strength low alloy steel bolts and nuts. Steel meets AWWA Standard C111. Type 304 and 316 Stainless Steel bolt material optional.
GASKETS Gaskets are made Styrene Butadiene Rubber (SBR) compounded for water and sewer service in accordance with ASTM D 2000 3 BA715. Other compounds available for petroleum, chemicals, or high temperature service.
COATINGS Shop coat applied to parts for corrosion protection in transit. Fusion bonded epoxy in accordance with AWWA C213 optional.
