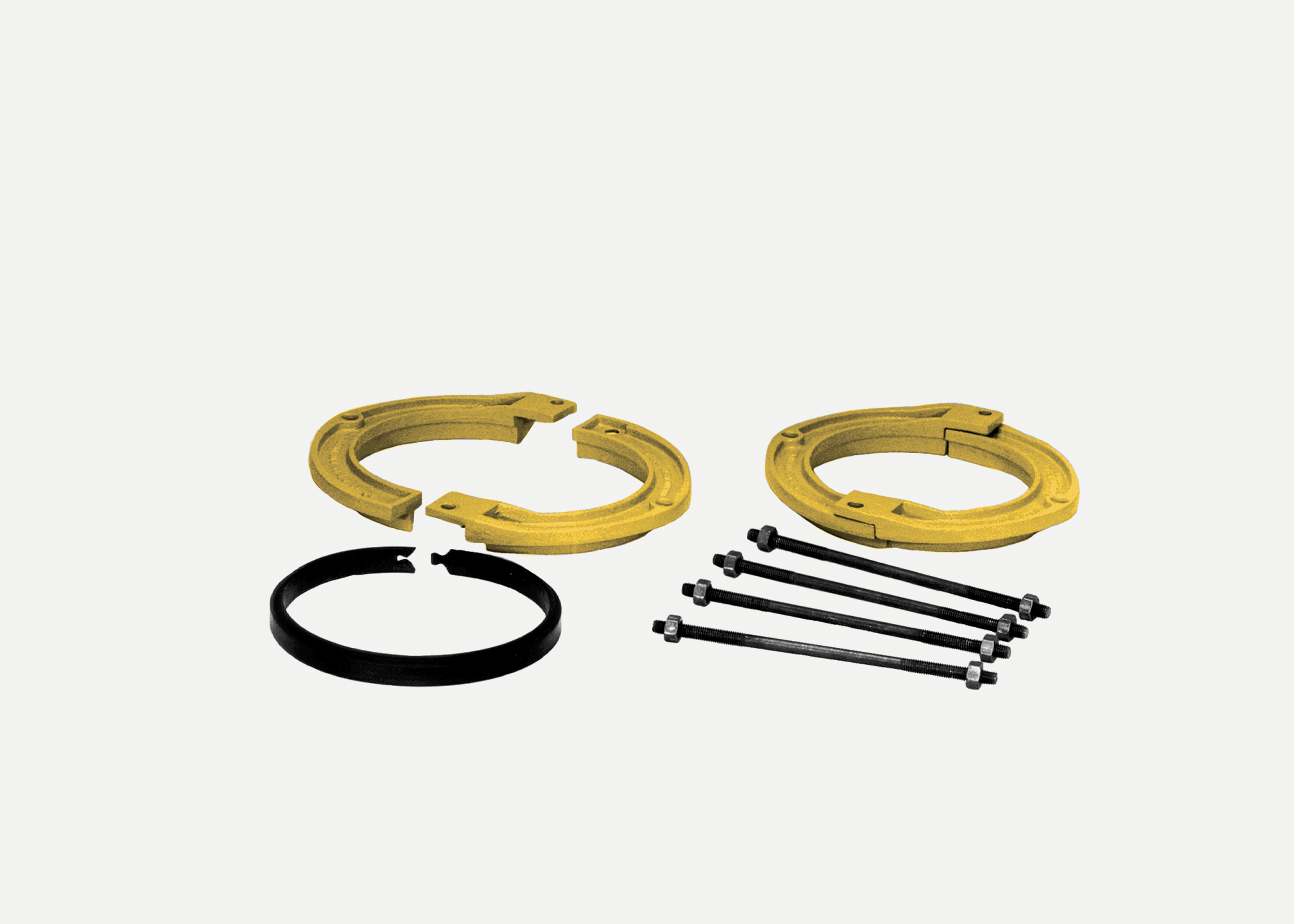

STYLE 517
Bell joint leak clamp.
Manufactured in the USA.
USE Provides a fast, economical means of repairing or preventing leaks on iron pipe size (IPS) PVC, and SDR35 sewer pipe.
SIZES 4" - 12"
COMPATIBILITY IPS PVC and SDR35 sewer pipe.
WORKING PRESSURE Up to 150 psi.
NSF61 certified upon request.
MATERIALS
CASTINGS The rings are cast from ductile (nodular) iron, meeting or exceeding ASTM A 536, Grade 65-45-12.
GASKETS Gaskets are made from virgin Styrene Butadiene Rubber (SBR) compounded for water and sewer service in accordance with ASTM D 2000 MBA 710. Other compounds available for petroleum, chemical, or high temperature service.
BOLTS AND NUTS 1/2” galvanized mild steel, National Coarse rolled thread and heavy hex galvanized nuts. Stainless steel bolts and nuts available.
COATINGS Shop coat applied to cast parts for corrosion protection in transit. Fusion bonded epoxy, liquid epoxy and other coatings available on request.
