style 101N-H

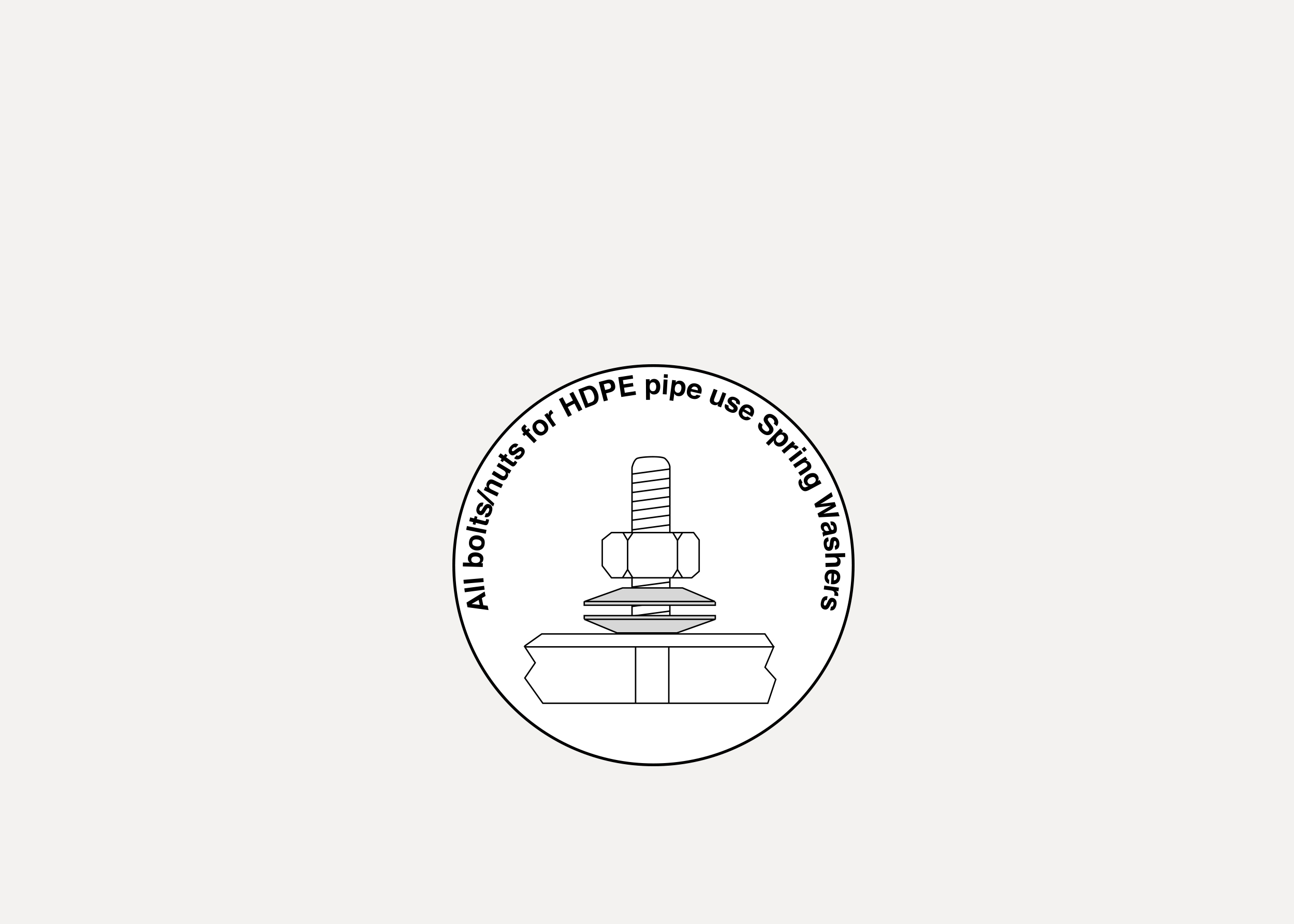

Nylon coated ductile iron service saddles with single steel strap. 101N-H and 202N-H service saddles use spring washers to compensate for pipe contraction during temperature and pressure changes.
Manufactured in the USA.
SIZES 2" - 12"
OUTLET SIZES 1/2" - 2-1/2"
COMPATIBILITY  For use on HDPE pipe with a minimum wall thickness of SDR26.
WORKING PRESSURE  pressure rating of the pipe up to 150 psi.

NSF61 certified.




MATERIALS

CASTING The saddle body is cast from ductile (nodular) iron, meeting or exceeding ASTM A 536, Grade 65-45-12.
GASKET Gasket is made from NSF 61 approved Nitrile Butadiene Rubber (NBR) compounded for water and sewer service and a tolerance of petroleum products in accordance with ASTM D 2000 MBC 610. Other compounds available for special applications.
STRAPS Type 304 (18-8) heavy gauge Stainless Steel, two inches wide to spread out clamping forces on the pipe. GMAW and GTAW welds. Passivated for corrosion resistance.
BOLTS, NUTS For 3", 1/2" UNC roll thread Type 304 (18-8) Stainless Steel bolts with heavy hex nuts. 4" and above use 5/8" UNC roll thread Type 304 (18-8) Stainless Steel bolts with heavy hex nuts. All welds fully passivated for enhanced corrosion resistance. Nuts coated to prevent galling.
WASHERS 1/2” or 5/8” flat, type 304 (18-8) heavy gauge Stainless Steel and plastic washer to prevent galling.
SPRING WASHERS 1/2” or 5/8" 304 Stainless Steel spring washers manufactured from a special grade of Stainless Steel used in the making of springs.
