style 202BS

Bronze service saddle with dual stainless steel straps.
Manufactured in the USA.
SIZES 4" - 16"
OUTLET SIZES 1/2" - 2"
COMPATIBILITY  Steel, cast iron, asbestos cement and other types of pipe.
WORKING PRESSURE  Up to 200 psi.




MATERIALS

CASTING The saddle body is cast from 85-5-5-5 waterworks bronze in accordance with AWWA C800 and ASTM B 62. Threads can either be National Pipe Thread (NPT) also referred to as IP threads or AWWA CC threads.
GASKETS Gaskets are made from Nitrile Butadiene Rubber (NBR) compounded for water and sewer service and a tolerance of petroleum products in accordance with ASTM D 2000 MBC 610, and NSF 61 Certified Other compounds available for special applications.
STRAPS Type 304 (18-8) heavy gauge Stainless Steel per ASTM A 240. Straps are two inches wide to spread out clamping forces on the pipe. GMAW and GTAW welds. Passivated for corrosion resistance.
BOLTS, NUTS 5/8" UNC roll thread Type 304 (18-8) Stainless Steel bolts per ASTM A 479. Heavy hex nuts per ASTM A 194. All welds fully passivated for enhanced corrosion resistance. Nuts coated to prevent galling.
WASHERS Flat, type 304 (18-8) heavy gauge Stainless Steel.



related products

Bronze service saddle with single bronze strap

Bronze service saddle with dual bronze straps

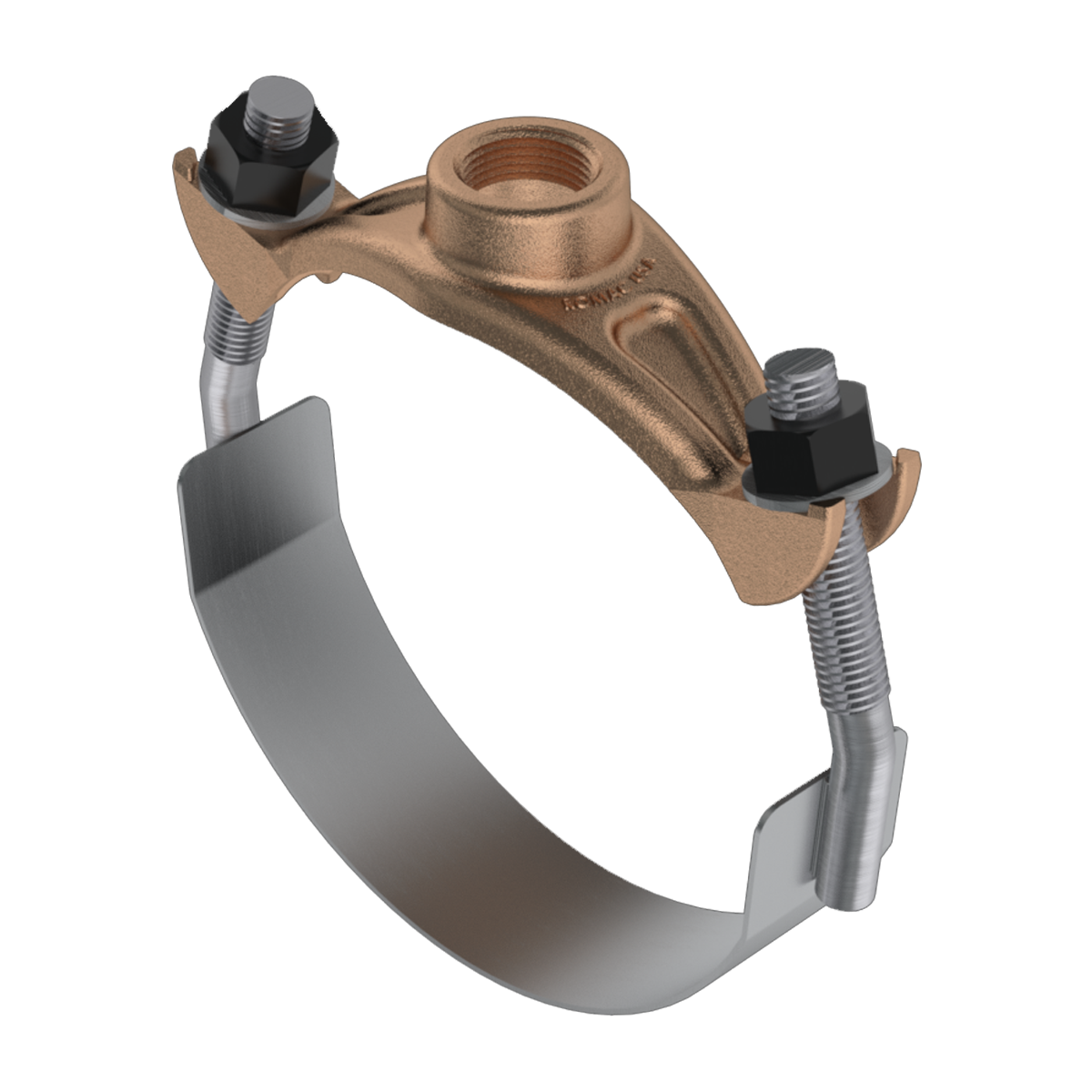

Bronze service saddle with single stainless steel strap
